Camshafts (2.5 V6)

Camshafts

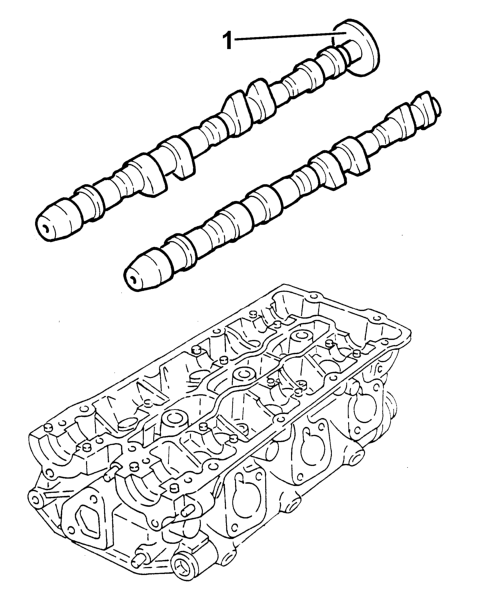

Two camshafts for each cylinder head (inlet - exhaust) rotate on four mounts.

Disc (1) at the rear end of the exhaust side camshaft for the right head is fitted with a reference pin for the timing sensor.
