Power steering pump mount - r r (2.4 JTD)

Operation 4130B32 · 2.4 JTD · Power steering hydraulic sytem

Removal

Position the vehicle on the ramp.

Ensure that the ignition key is in the stop OFF, then disconnect the battery negative terminal.

Component A1B Battery

Proceed with the removal See Op. 1016A10 Sound-proofing cover - r + r .

Proceed with the removal See Op. 4450B10 Front or rear wheel (one) - r+r (Right side).

Proceed with the removal See Op. 7055B64 Engine bay dust protection in rear wheel arch (one), lh or rh - r r (Right side).

Proceed with the removal See Op. 7055B54 Under-engine guard - r r .

Proceed with the removal See Op. 1092G10 Single engine belt r r .

Proceed with the removal See Op. 1092A12 Crankshaft pulley - r+r for versions with air conditioner .

Proceed with the removal See Op. 1092G14 Engine component single belt mobile tensioner - r + r .

Proceed with the removal See Op. 1032D12 Timing system protective cover(s) - r + r .

Proceed with the removal See Op. 1008C14 Engine link bracket - r r .

Proceed with the removal See Op. 1032B14 Toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner .

Proceed with the removal See Op. 1032C31 Fixed timing tensioner - r r .

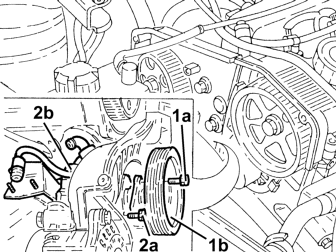

1 Undo the bolts 1a and remove the power steering pump drive pulley 1b.

2 Undo the bolts 2a and move the power assisted steering pump 2b away from the support.

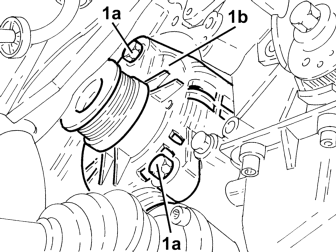

1 Undo the bolts 1a and remove the alternator 1b without disconnecting the electrical connections.

1 Undo the bolts 1a and remove the power assisted steering pump support 1b.

Refitting

Place the power assisted steering pump back in its housing and secure it by tightening the bolts to the recommended torque.

Place the alternator back in its housing and secure it using the bolts.

Place the power assisted steering pump back in its housing and fix it tightening the bolts to the recommended torque.

Bolt M8 – Power steering pump: (Support side) 1.9 - 2.3 daNm

Place the power assisted steering pump drive pulley back in its housing and secure it tightening the bolts to the recommended torque.

Screw M6 – Power steering pump drive pulley: 0.6 ÷ 0.8 daNm

Proceed with the refitting See Op. 1032C31 Fixed timing tensioner - r r .

Proceed with the refitting See Op. 1032B14 Toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner .

Proceed with the refitting See Op. 1008C14 Engine link bracket - r r .

Proceed with the refitting See Op. 1032D12 Timing system protective cover(s) - r + r .

Proceed with the refitting See Op. 1092G14 Engine component single belt mobile tensioner - r + r .

Proceed with the refitting See Op. 1092A12 Crankshaft pulley - r+r for versions with air conditioner .

Proceed with the refitting See Op. 1092G10 Single engine belt r r .

Proceed with the refitting See Op. 7055B54 Under-engine guard - r r .

Proceed with the refitting See Op. 7055B64 Engine bay dust protection in rear wheel arch (one), lh or rh - r r (Right side).

Proceed with the refitting See Op. 4450B10 Front or rear wheel (one) - r+r (Right side).

Proceed with the refitting See Op. 1016A10 Sound-proofing cover - r + r .

Connect the battery terminal (-).

Remove the car from the ramp.
