Bonnet lid opening lever - r+r
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Compartment covers › Bonnet lid opening lever - r+r
Body fittingsBonnet lid opening lever - r+r

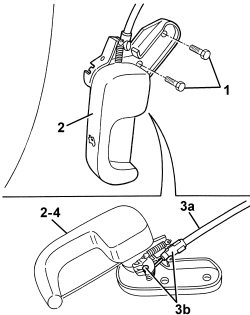

BONNET LID OPENING LEVER - R+R
Removing
1. Working under the dashboard in the area of the driver''s side panel, unscrew the bolts securing the bonnet lid opening lever.
2. Move the lever slightly
3. Disconnect the control cable (3a) from lever retainers (3b).
4. Keep the lever.
Refitting
- Check that the lever is not damaged.
- Connect the control cable to the lever retainers.
- Position the lever and tighten the bolts.
- Check the operation of the bonnet lid opening mechanism.
