P044 parking sensor buzzer
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Various consumers › P044 parking sensor buzzer
Connectors and pin-outsP044 parking sensor buzzer

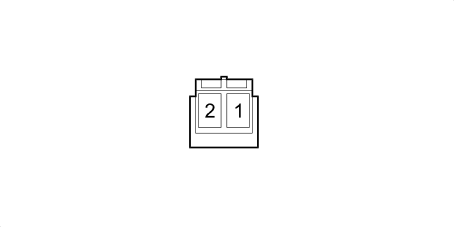

P044 PARKING SENSOR BUZZER
P044A – Front
| Wiring | Colour |
|---|---|
| See 12 FRONT | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | LM | See M084B PARKING SENSOR CONTROL UNIT (FRONT) | 3 | ||
| 2 | CB | See M084B PARKING SENSOR CONTROL UNIT (FRONT) | 4 | ||
P044B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | LM | See M084A PARKING SENSOR CONTROL UNIT (REAR) | 2 | ||
| 2 | BL | See M084A PARKING SENSOR CONTROL UNIT (REAR) | 10 | ||
