SLIDING BLIND DRIVE CABLES - R.R.

Operation 7030L25 · TRANSPARENT ROOF PANEL

Removing

- Remove the rear parcel shelf.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

- Work on both sides of the vehicle.

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.

Or, alternatively.

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

Op. 7005A34 FRONT SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7030L12 TRANSPARENT ROOF PANEL COVER - R.R.

Op. 7030L20 SUN BLIND ASSEMBLY - R.R.

Op. 7030L24 SLIDING BLIND MOVEMENT MOTOR - R.R.

Op. 7030L23 SUN BLIND CROSSMEMBER - R.R.

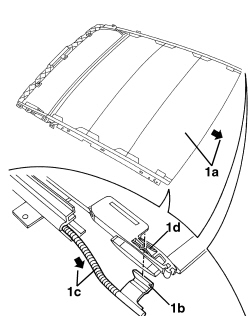

1. Slide the blind (1a) forwards manually until the ends (1b) of the drive cables (1c) come out.

Disconnect the ends (1b) from the blind retainers (1d) on both sides of the blind.

2. Release the drive cables (1c) from the sliding seats.

Refitting

- Check that the drive cables are not damaged and that they are clean.

If the cables and the guides are being cleaned, grease the sliding parts again.

1. Fit the drive cables (1a) in position, not inserting the ends (1b).

2. Attach the ends (1b) to the blind retainers (2a), then fully insert the blind (2b) in the sliding guides.

Op. 7030L23 SUN BLIND CROSSMEMBER - R.R.

1. Carry out blind (1a) sliding tests on the sliding guides (1b) manually.

2. Align the blind (1a) placing it manually in the end of travel position on the front crossmember (2a), then refit the motor in these conditions.

Op. 7030L24 SLIDING BLIND MOVEMENT MOTOR - R.R.

Op. 7030L12 TRANSPARENT ROOF PANEL COVER - R.R.

Op. 7030L20 SUN BLIND ASSEMBLY - R.R.

Op. 7005A34 FRONT SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.
