TAIL-GATE WIRING - R R

Operation 5505B55 · DOOR, BOOT AND BONNET WIRING

Removing

Op. 7015A05 TAILGATE LOWER INTERIOR PANEL-R R

Op. 7015A06 TAILGATE UPPER INTERIOR PANEL - R.R.

Op. 7015B10 SINGLE TAILGATE LOCK - R+R OR REPAIR WITH PANEL/PROTECTION REMOVED

- Remove both the pillar trims.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

- Remove the rear parcel shelf.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

1. Working on the left and right rear pillar trims, release the bolt covers (1a).

Undo the bolts (1b).

Move and lower the pillar trims (1) without releasing them from the seat belts (1d).

- Release the door housing seals in the roof lining area.

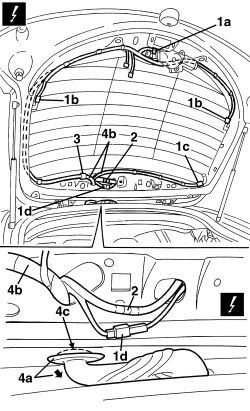

1. Disconnect the electrical connections (1a, 1b, 1c, 1d).

2. Disconnect the rearscreen washer fluid pipe.

3. Disconnect the wiring retainers.

4. Disconnect the duct seal (4a) and extract the wiring (4b) from the tailgate, passing it through the opening (4c).

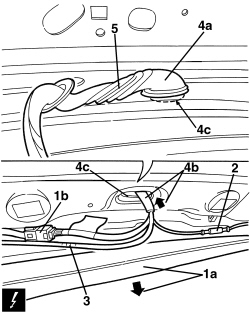

1. Gently lower the roof lining (1a) slightly and disconnect the electrical connection (1b).

2. Disconnect the radio aerial connection.

3. Disconnect the rearscreen washer fluid pipe.

4. Disconnect the duct seal (4a) and extract the wiring/pipe (4b) from the bodyshell, passing it through the opening (4c).

5. Keep the wiring built into the tailgate.

Refitting

- Check that the wiring is not damaged and that the individual conducts are correctly fastened to the connections.

- If necessary, carry out continuity tests.

- Position the wiring and the duct seal.

- Connect the rearscreen washer fluid pipe.

- Connect the electrical connections.

- Secure the wiring to the retainers.

- Reposition the roof lining and fit the door housing seals.

- Position the rear pillar trims and secure them using the bolts; fit the bolt covers.
