RADIATOR COOLING FAN - R + R

Operation 1088E10 · COOLANT TEMPERATURE CONTROL DEVICES

2.2 JTS

Removing

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

1. Undo the bolt (1a) and move the impact sensor (1b) to the side.

1. Disconnect the electrical connection from the radiator cooling fan.

1. Undo the right nut securing the radiator cooling fan.

1. Undo the left nut securing the radiator cooling fan.

2. Disconnect the electrical connections for the engine cooling fan resistor.

1. Remove the radiator cooling fan releasing it upwards.

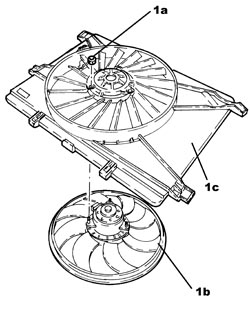

1. At the bench, undo the nuts (1a) and separate the fan motor (1b) from the duct (1c).

Refitting

- Fit the fan motor on the duct and secure it using the nuts.

- Refit the radiator cooling fan and secure it using the nuts.

- Connect the electrical connections to the engine cooling fan resistor.

- Position the impact sensor in its housing and secure it using the bolt.

- Connect the negative battery terminal.
