INSTRUCTIONS
The power and torque curves illustrated can be obtained with the engine overhauled and run in (50 hours operation) without a fan and with an exhaust silencer and air filter fitted, at sea level.

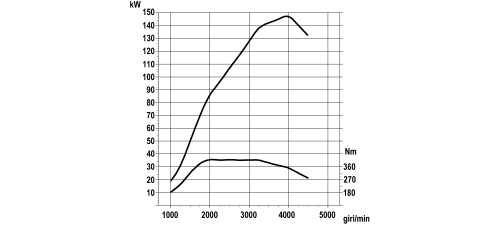

2.2 JTS Engine

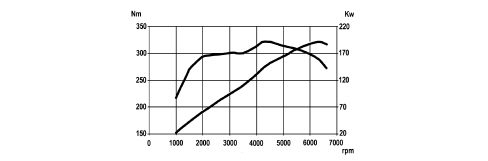

3.2 JTS Engine

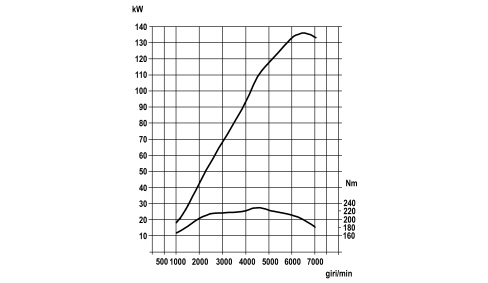

2.4 JTD 20v Engine
