AIR CONDITIONER - COMPONENT LOCATION

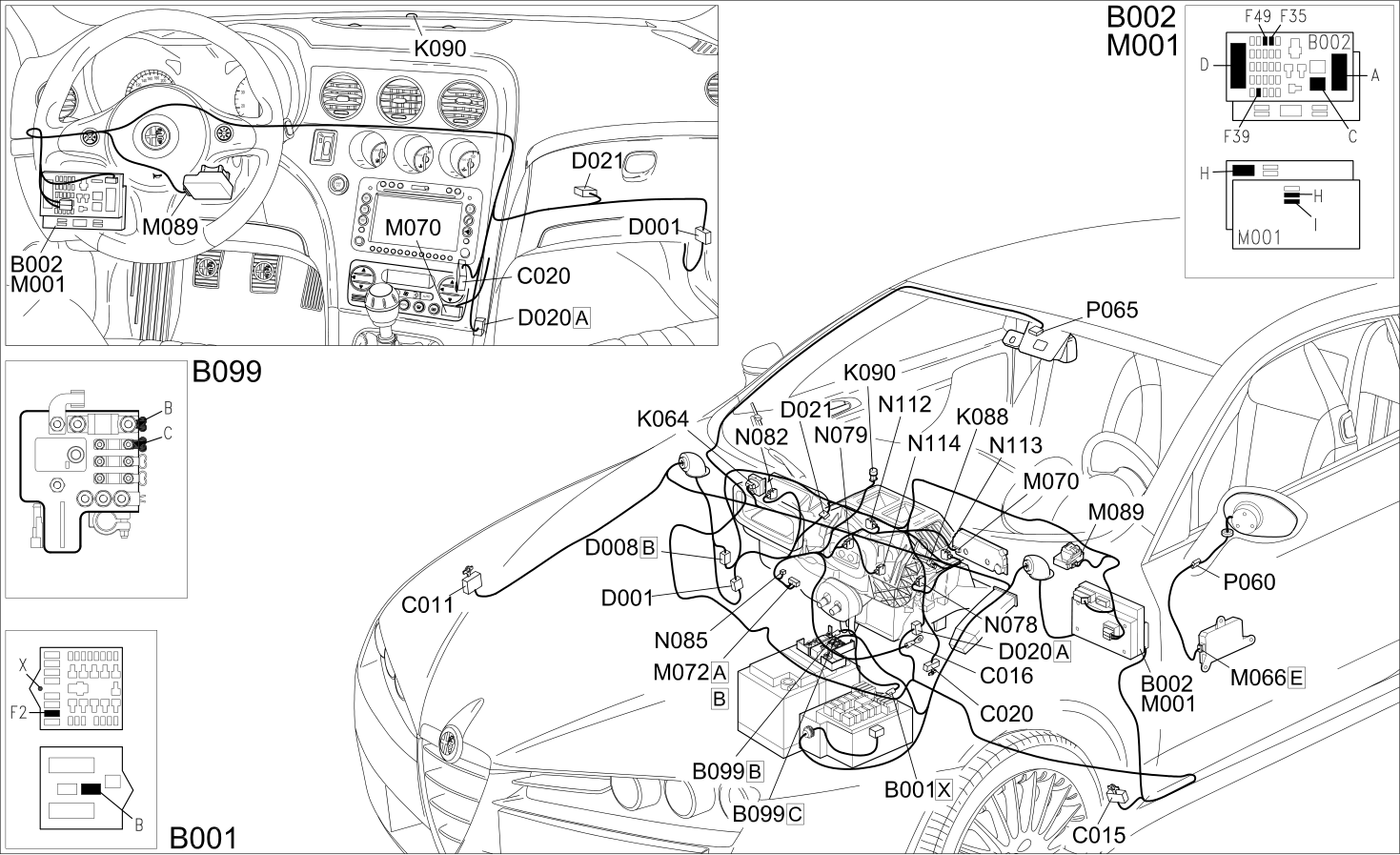

Automatic climate control

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C011	RIGHT FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D020	DASHBOARD/REAR COUPLING
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
K064	EXHAUST GAS PRESENCE SENSOR	Op. 5010D72 AIR QUALITY SENSOR - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
K088	UPPER MIXED AIR TEMPERATURE SENSOR	Op. 5010D20 MIXED AIR TEMPERATURE SENSOR - R+R FOLLOWING ELECTRICAL WIRING CHECK OPERATION
K090	SOLAR SENSOR	Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R.
M072	FAN SPEED VARIATOR	Op. 5040C44 FAN MOTOR ELECTRONIC VARIATOR - R+R
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N078	LEFT MIXED AIR FLAP ACTUATOR	Op. 5040D84 AIR CONDITIONING LEFT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N079	RIGHT MIXED AIR FLAP ACTUATOR	Op. 5040D86 AIR CONDITIONING RIGHT AIR MIXTURE FLAP CONTROL MOTOR - R.R
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
N112	RIGHT AIR DISTRIBUTION ACTUATOR	Op. 5040D96 AIR CONDITIONING RIGHT UPPER DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
N113	LEFT AIR DISTRIBUTION ACTUATOR	Op. 5040D94 AIR CONDITIONING LEFT UPPER AIR DISTRIBUTION FLAP MOTOR (DEFROST) - R.R
N114	REAR AIR DISTRIBUTION ACTUATOR	Op. 5040D82 AIR CONDITIONING LOWER AIR DISTRIBUTION FLAP CONTROL MOTOR - R.R.
P060	DRIVER'S DOOR MIRROR	Op. 7005R30 ELECTRICALLY CONTROLLED DOOR MIRROR (ONE) - R+R
P065	ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.

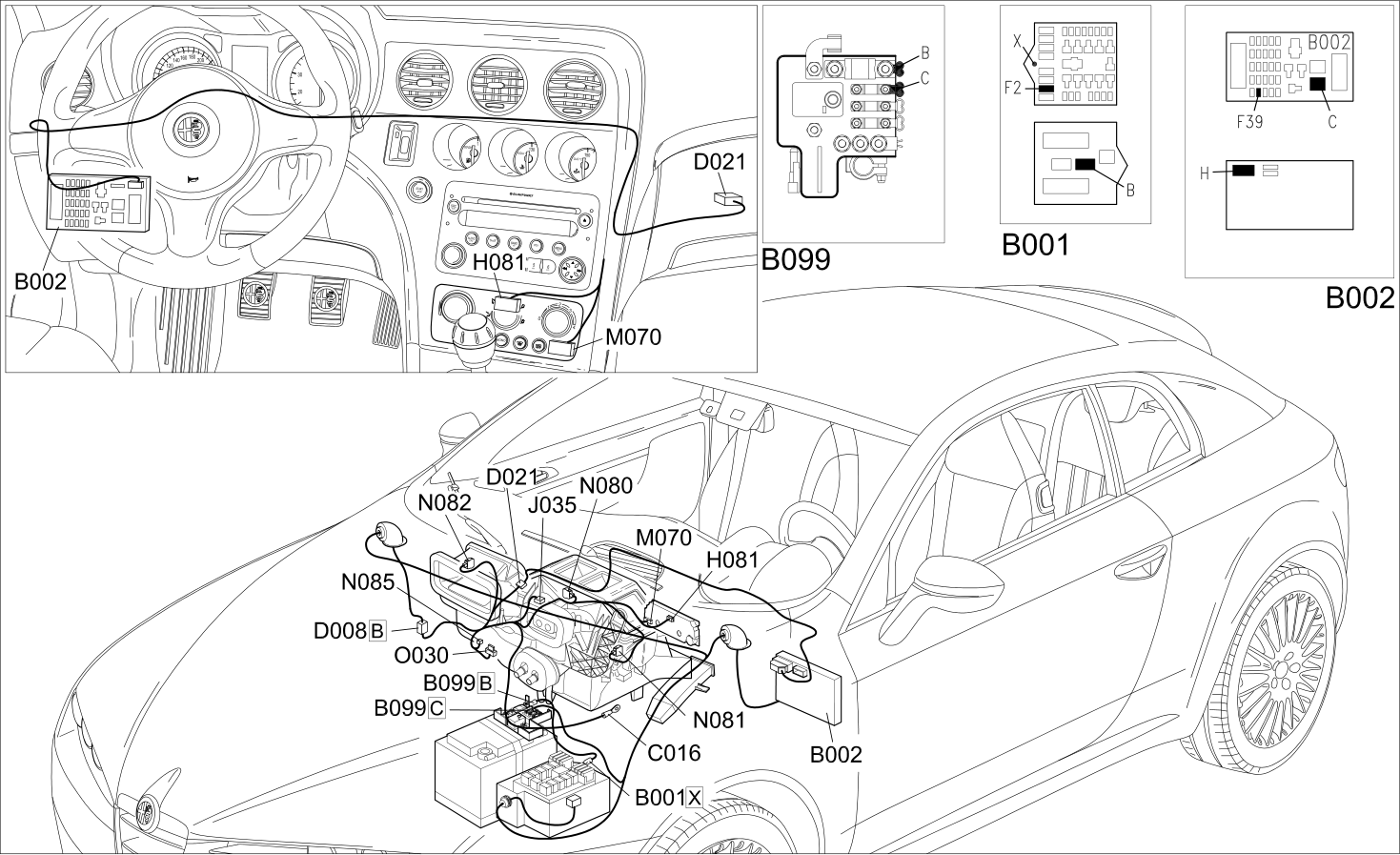

Manual climate control

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C016	AIR CONDITIONING UNIT EARTH
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
H081	CLIMATE CONTROL FAN CONTROL
J035	PASSENGER COMPARTMENT AIR FAN RELAY
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT	Op. 5040D18 AIR CONDITIONING CONTROL UNIT - R.R.
N080	AIR DISTRIBUTION FLAP ACTUATOR
N081	MIXTURE FLAP ACTUATOR
N082	OUTSIDE / RECIRCULATION AIR INTAKE FLAP ACTUATOR	Op. 5040D75 AIR CONDITIONING RECIRCULATION FLAP CONTROL MOTOR - R.R
N085	PASSENGER COMPARTMENT AIR FAN	Op. 5040C30 AIR CONDITIONING FAN - R.R.
O030	PASSENGER COMPARTMENT AIR FAN ADJUSTMENT RESISTOR
