INTEGRATED RADIOPHONE - WIRING DIAGRAM

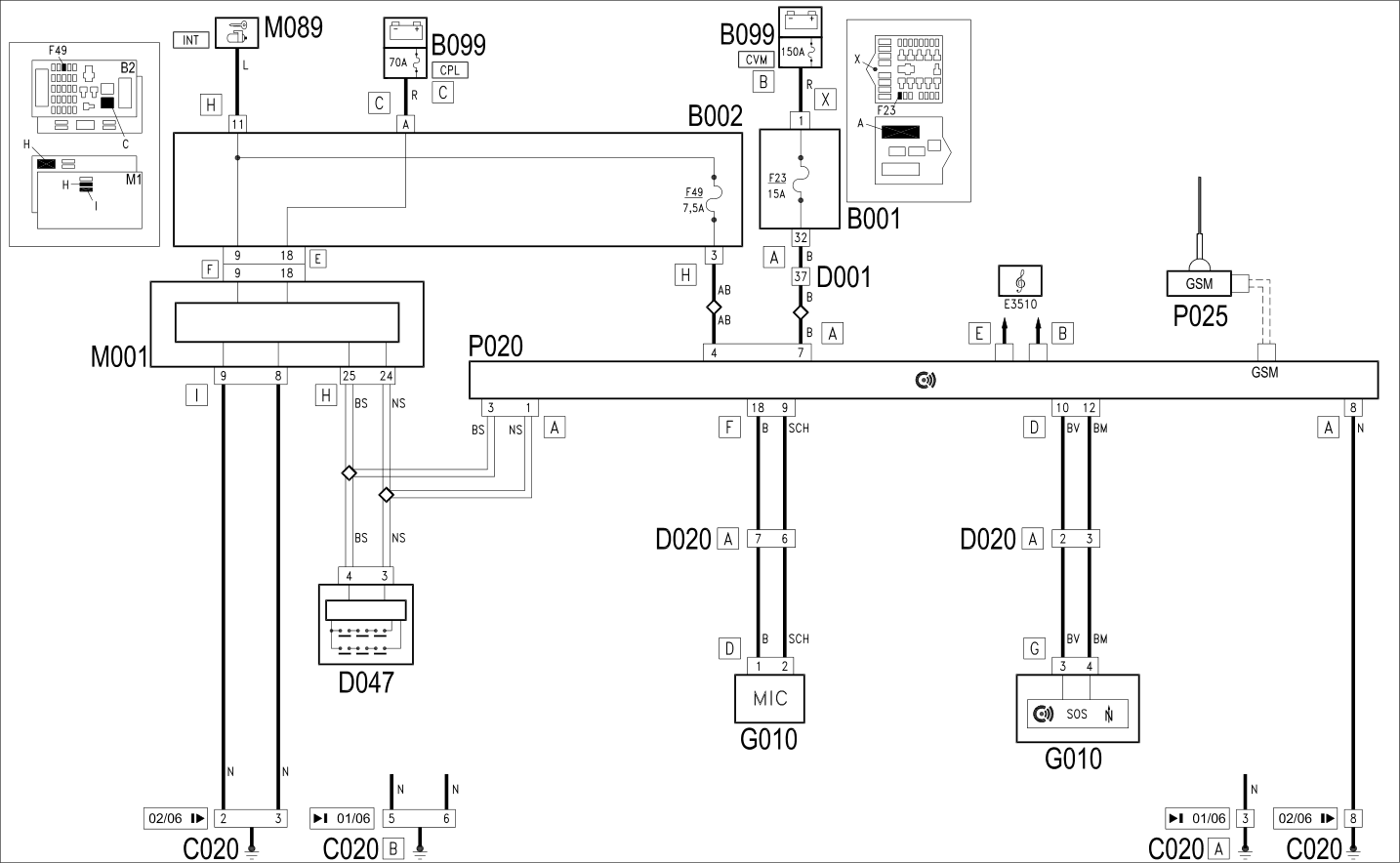

Connect Nav+

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
D001	FRONT/DASHBOARD COUPLING
D020	DASHBOARD/REAR COUPLING
D047	CLOCK SPRING COUPLING
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
P020	RADIO	Op. 5580P12 CONNECT PANEL REPLACE
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R

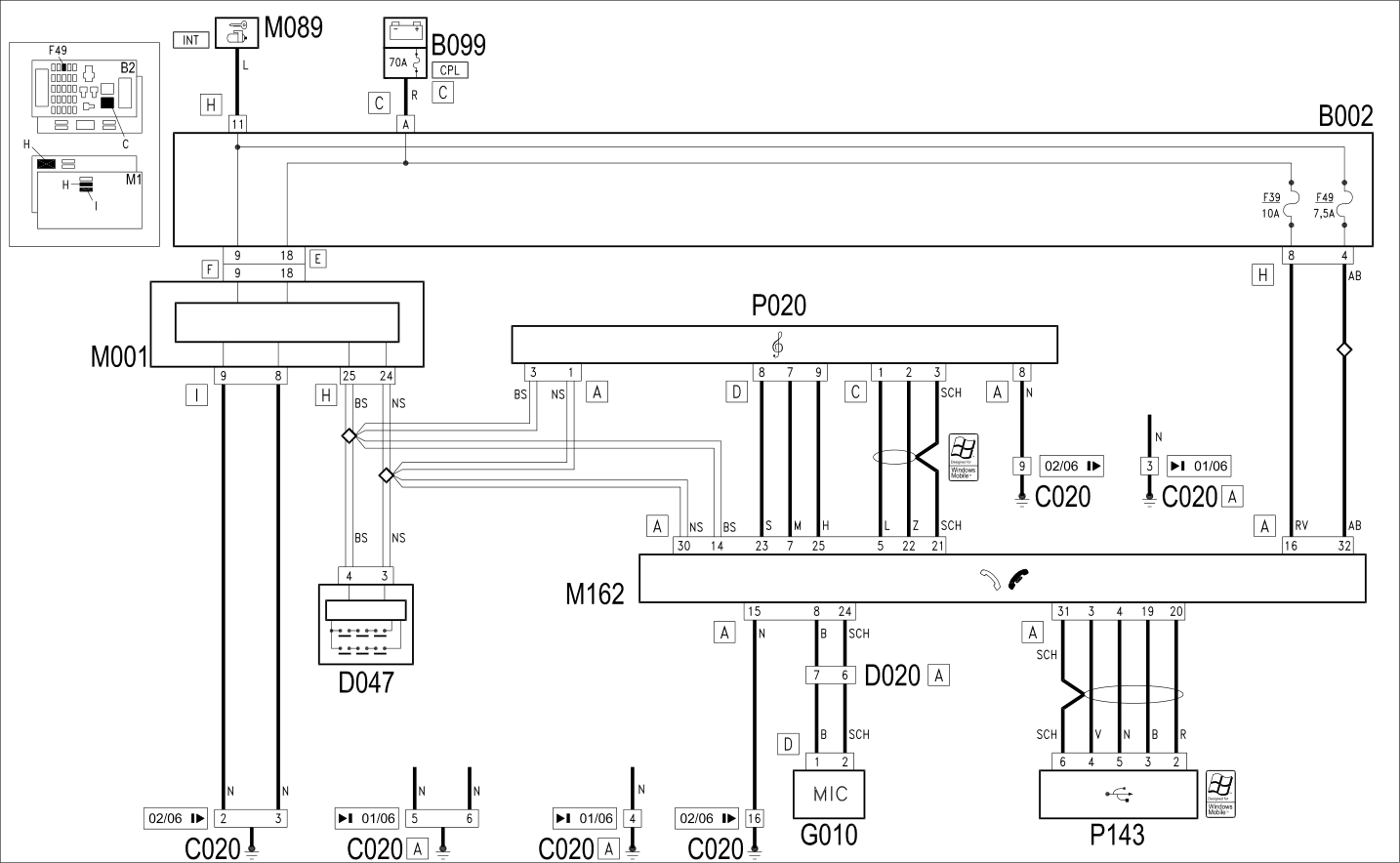

Bluetooth

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
D020	DASHBOARD/REAR COUPLING
D047	CLOCK SPRING COUPLING
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
M162	BLUETOOTH CONTROL UNIT	Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P143	USB SOCKET
