ASHTRAY (ONE) R+R

Operation 7065C42 · ACCESSORIES AND DECORATIONS

Removing

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

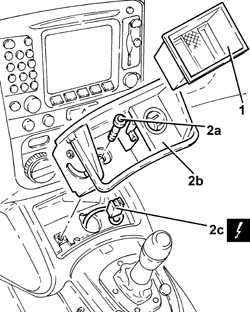

1. Open the ashtray cover by pressing it and releasing it.

1. Extract the ashtray compartment.

2. Undo the bolt (2a) and extract the ashtray support (2b) as far as necessary to disconnect the electrical connection (2c).

- Remove the ashtray mounting

Refitting

- Connect the electrical connection, then place the ashtray support back in its housing and secure it using the bolt.

- Place the ashtray compartment back in its housing.

- Close the ashtray cover.

- Connect the negative battery terminal.
