Wiring diagrams and electrical functionsInstrument panel - location of components
INSTRUMENT PANEL - LOCATION OF COMPONENTS
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C10 | FRONT LEFT EARTH ( FRONT ) | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| C38 | EARTH ON TUNNEL | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D4 | FRONT/ENGINE CONNECTION ( CONNECTORS ) | |
| D20 | REAR DASHBOARD COUPLING ( REAR ) | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| I40 | HANDBRAKE SWITCH | Op. 5550D BRAKE AND REVERSING LIGHTS |
| I45 | SEAT BELTS WARNING LIGHT SWITCH | Op. 7065A FRONT SEAT BELTS |
| I50 | INERTIAL SWITCH | Op. 1040A FUEL TANK AND COMPONENTS |
| K20 | LEFT BRAKE PAD WEAR SENSOR SWITCH ( FRONT ) | Op. 3310A FRONT DISC BRAKES |
| K25 | BRAKE FLUID LEVEL SENSOR (SWITCH) ( FRONT ) | Op. 3330C BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE |
| K29 | ENGINE OIL TEMPERATURE SENSOR ( CONNECTORS ) | Op. 1084A INDICATORS/CHECK DEVICES |
| K32 | ENGINE OIL LEVEL SENSOR | Op. 1084A INDICATORS/CHECK DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| N40 | FUEL PUMP AND SENDER UNIT | Op. 1040A FUEL TANK AND COMPONENTS |

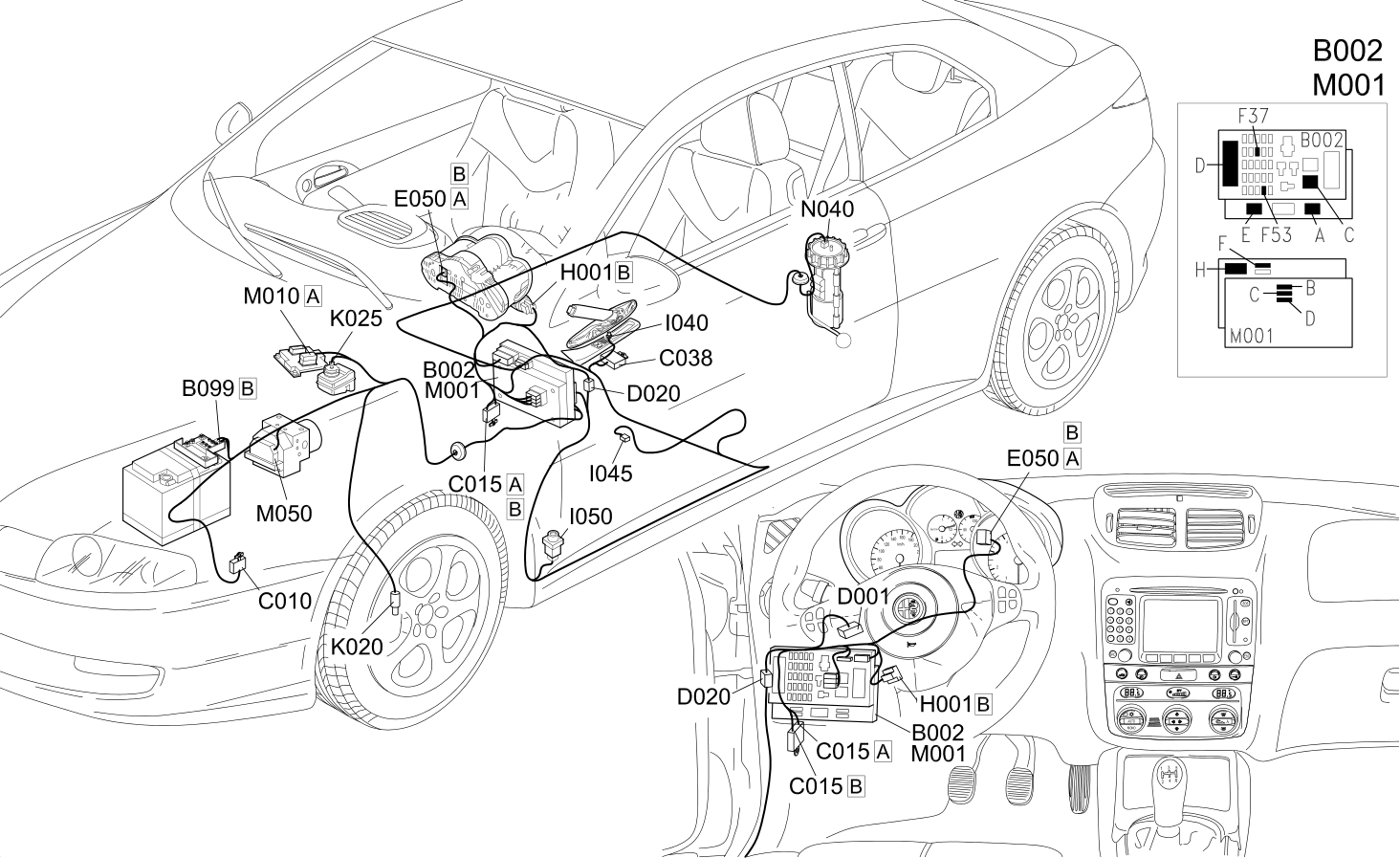

Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C10 | FRONT LEFT EARTH ( FRONT ) | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| C38 | EARTH ON TUNNEL | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D4 | FRONT/ENGINE CONNECTION ( CONNECTORS ) | |
| D20 | REAR DASHBOARD COUPLING ( REAR ) | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| I40 | HANDBRAKE SWITCH | Op. 5550D BRAKE AND REVERSING LIGHTS |
| I45 | SEAT BELTS WARNING LIGHT SWITCH | Op. 7065A FRONT SEAT BELTS |
| I50 | INERTIAL SWITCH | Op. 1040A FUEL TANK AND COMPONENTS |
| K20 | LEFT BRAKE PAD WEAR SENSOR SWITCH ( FRONT ) | Op. 3310A FRONT DISC BRAKES |
| K25 | BRAKE FLUID LEVEL SENSOR (SWITCH) ( FRONT ) | Op. 3330C BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE |
| K29 | ENGINE OIL TEMPERATURE SENSOR ( CONNECTORS ) | Op. 1084A INDICATORS/CHECK DEVICES |
| K32 | ENGINE OIL LEVEL SENSOR | Op. 1084A INDICATORS/CHECK DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| N40 | FUEL PUMP AND SENDER UNIT | Op. 1040A FUEL TANK AND COMPONENTS |
Location of components
Components
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C10 | FRONT LEFT EARTH ( FRONT ) | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| C38 | EARTH ON TUNNEL | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D4 | FRONT/ENGINE CONNECTION ( CONNECTORS ) | |
| D20 | REAR DASHBOARD COUPLING ( REAR ) | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| I40 | HANDBRAKE SWITCH | Op. 5550D BRAKE AND REVERSING LIGHTS |
| I45 | SEAT BELTS WARNING LIGHT SWITCH | Op. 7065A FRONT SEAT BELTS |
| I50 | INERTIAL SWITCH | Op. 1040A FUEL TANK AND COMPONENTS |
| K20 | LEFT BRAKE PAD WEAR SENSOR SWITCH ( FRONT ) | Op. 3310A FRONT DISC BRAKES |
| K25 | BRAKE FLUID LEVEL SENSOR (SWITCH) ( FRONT ) | Op. 3330C BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE |
| K29 | ENGINE OIL TEMPERATURE SENSOR ( CONNECTORS ) | Op. 1084A INDICATORS/CHECK DEVICES |
| K32 | ENGINE OIL LEVEL SENSOR | Op. 1084A INDICATORS/CHECK DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| N40 | FUEL PUMP AND SENDER UNIT | Op. 1040A FUEL TANK AND COMPONENTS |
