Wiring diagrams and electrical functionsEarths - wiring diagram
EARTHS - WIRING DIAGRAM

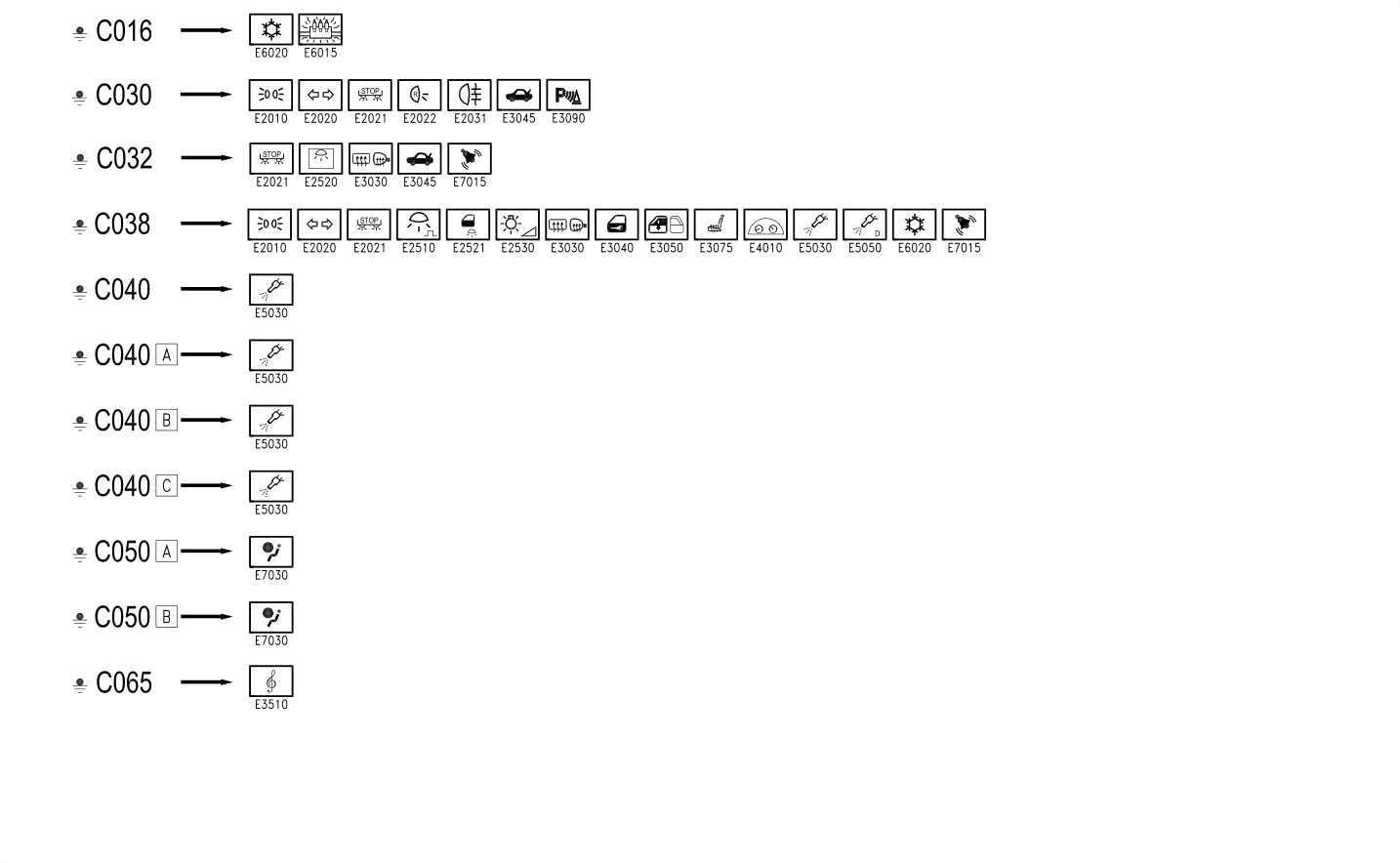

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| C1 | BATTERY EARTH | |
| C2 | BATTERY EARTH ON ENGINE ( BATTERY NEGATIVE ) | |
| C3 | BATTERY EARTH ON BODYSHELL ( BATTERY NEGATIVE ) | |
| C10 | FRONT LEFT EARTH ( FRONT ) | |
| C11 | RIGHT FRONT EARTH ( FRONT ) | |
| C12 | ABS FRONT EARTH | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| C16 | AIR CONDITIONING EARTH ( CONNECTORS ) | |
| C30 | LEFT REAR EARTH ( REAR ) | |
| C32 | REARSCREEN EARTH | |
| C38 | EARTH ON TUNNEL | |
| C40 | ENGINE EARTH | |
| C50 | AIR BAG EARTH | |
| C65 | HI-FI SYSTEM EARTH |
