Checking the Handbrake Stroke

Checking the Handbrake Stroke

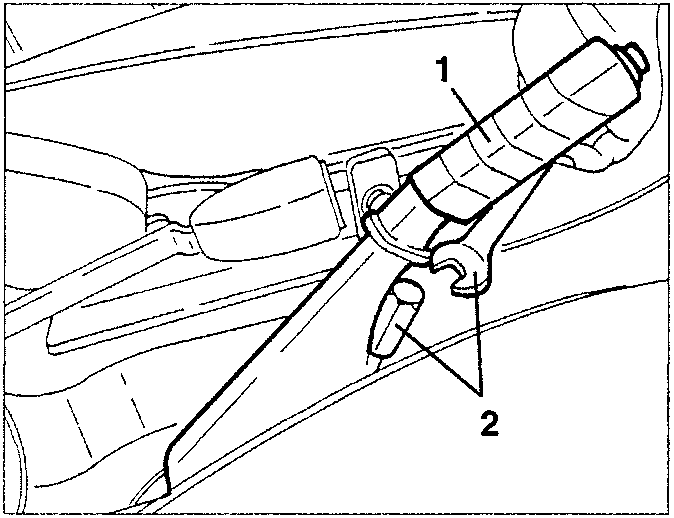

1. Move the control lever to the third - fourth click on the toothed sector, with the lever in this position check that the wheels are locked.
2. If not, tighten the adjustment screw until the wheels are locked.

• Exerting a force of appr. 30 kg on the control lever check that there are 3 clicks on the toothed sector.
• Check the wheels are free when the lever is in the rest position.

Checking the Power Steering Oil Level

• With the engine stationary, clean the power steering tank cover and the areas surrounding it.

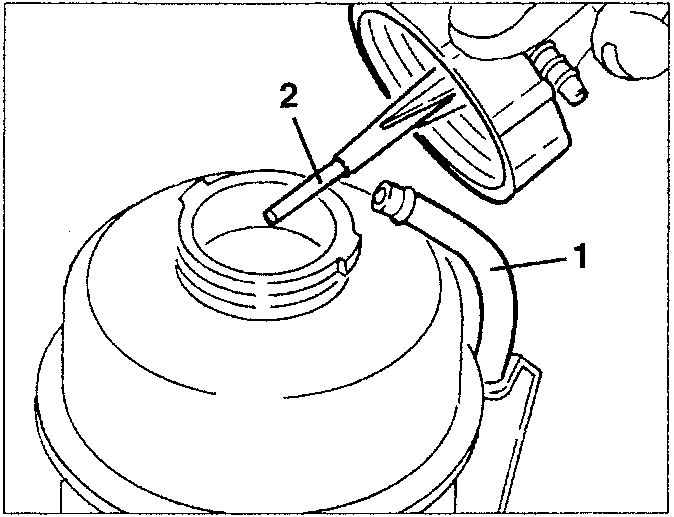

1. Disconnect the breather pipe from the cover on the tank.
2. Remove the cover checking that the level reaches the upper notch on the dipstick.

• If necessary top up with the specified oil proceeding as follows:

• Start the engine and wait for the level of the oil in the tank to stabilize.
• With the engine running, turn the steering wheel completely to the right and left a few times.
• Top up to the "MAX" level then refit the cover and insert the breather pipe.
