Jacking points

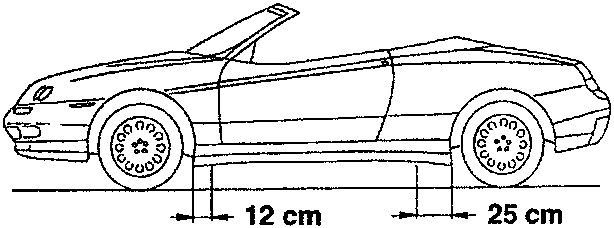

JACKING POINTS

With arm hoist or shop jack.

• Position the arms or the jack in the areas shown.

IMPORTANT: Be very careful when positioning the arms or the jack in the front jacking points to avoid squeezing the brake and fuel lines.

TOWING POINTS

The vehicle is equipped with two threaded attachments - one at the front and the other at the back - where to screw the tow hitch which is provided in the tool bag (in the boot).

Attain scrupulously to the laws regulating towing.

IMPORTANT: Before towing the vehicle, turn the key to MAR and back to STOP without removing it to prevent the steering wheel from locking.

Consider that while towing, the brake booster system is not running. Consequently, more effort on the brake pedal will be required.

Furthermore, when the engine is not running, the power steering system is neither working. Consequently, more effort on the steering wheel is required.

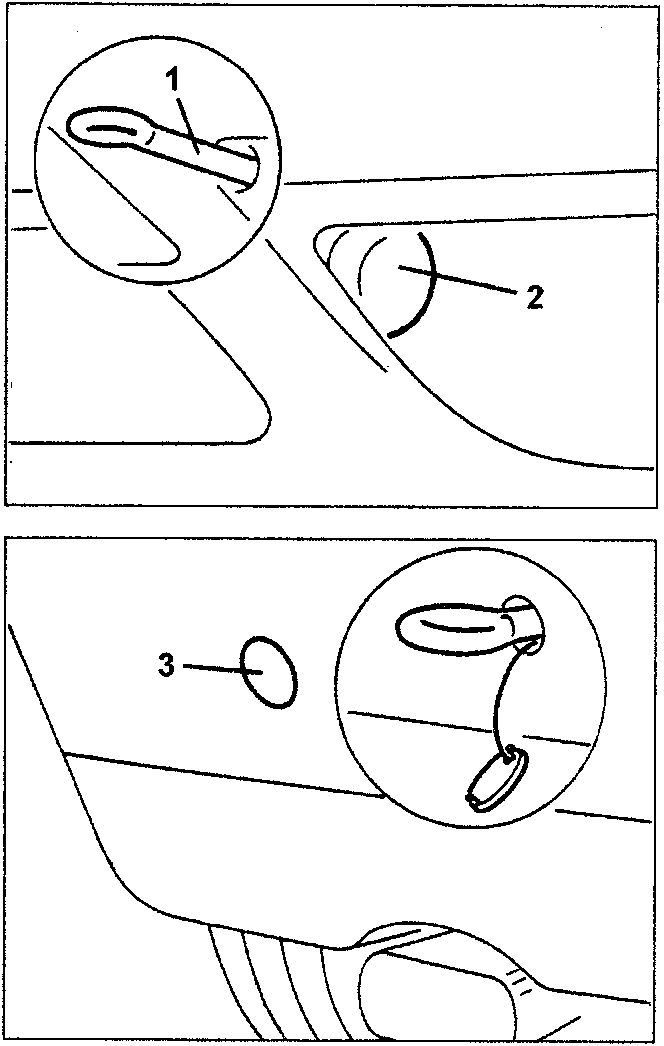

1. Front tow hitch
2. Front bumper slot
3. Rear bumper cover
