Air intake box

AIR INTAKE BOX

REMOVAL/REFITTING

• Proceed as described in "Removal/Refitting Throttle body" up to disconnection of the corrugated sleeve.

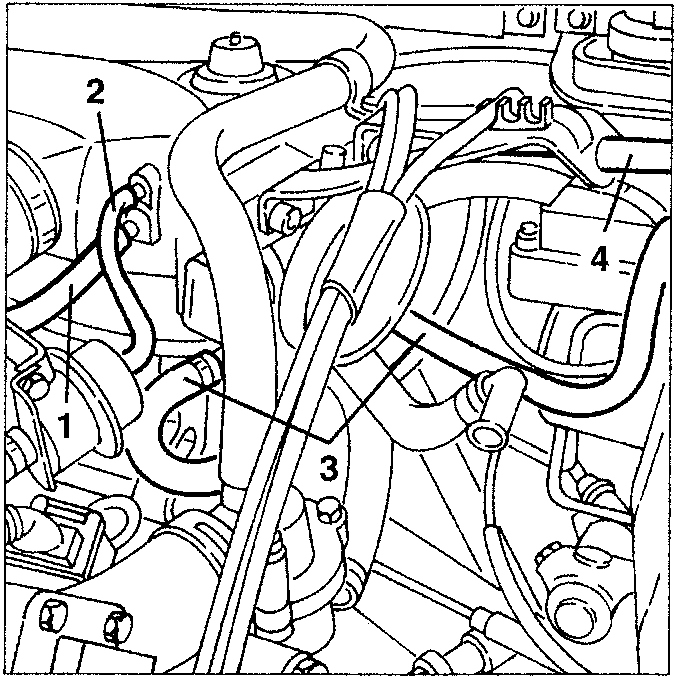

1. Disconnect the fuel vapour recirculation pipe from the intake box.
2. Disconnect the fuel pressure regulator vacuum takeoff pipe from the intake box.
3. Disconnect the coolant inlet and outlet pipes from the throttle body.
4. Disconnect the accelerator cable from the throttle.

• Free the spark plug cables from the fastenings on the accelerator cable support bracket.

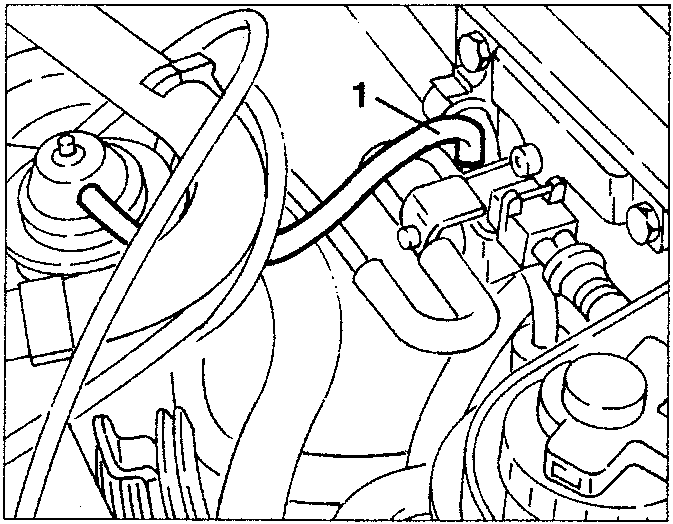

1. Disconnect the pipe that sends the vacuum signal to the E.G.R. valve from the pneumatic signal modulation solenoid valve.

• Disconnect the exhaust gas takeoff pipe from the E.G.R. valve.

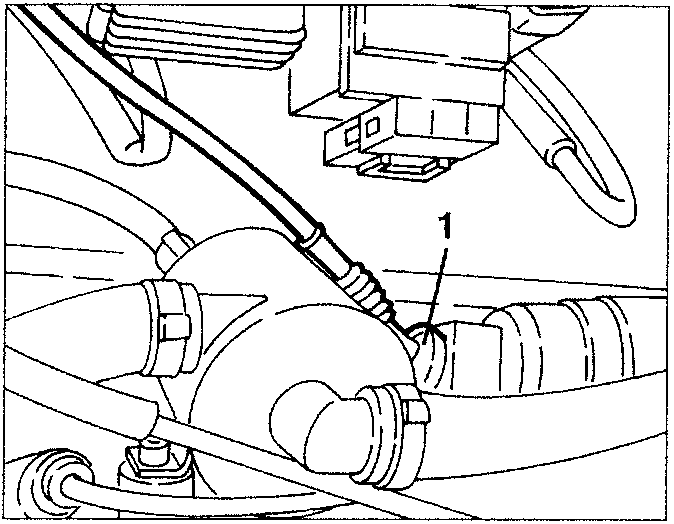

1. Disconnect the electrical connection from the constant idle speed actuator.

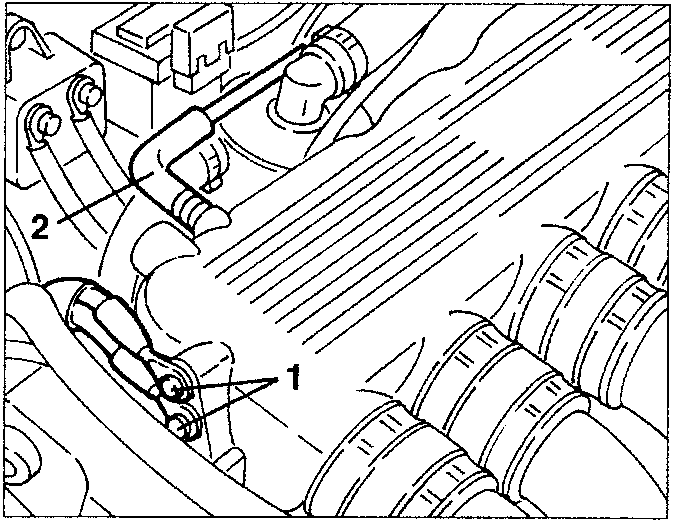

1. Disconnect the earth cables from the box.
2. Disconnect the vacuum takeoff socket for the E.G.R. pneumatic signal modulating solenoid valve from the intake box.

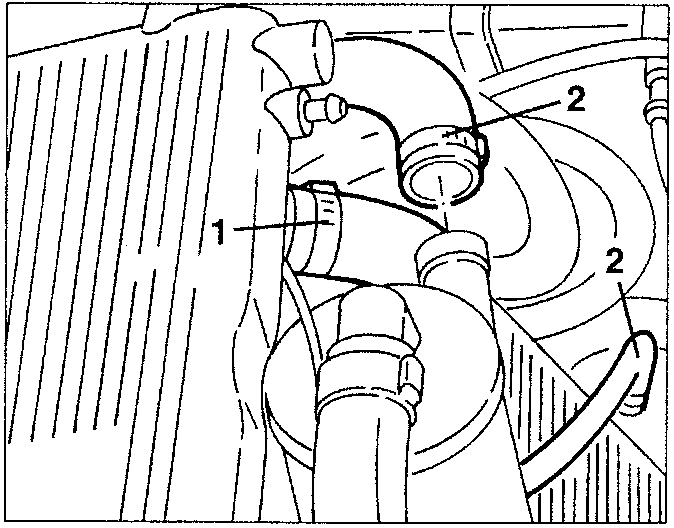

1. Disconnect the servobrake vacuum takeoff pipe from the box.
2. Disconnect the oil vapour recovery pipe and the oil recovery pipe from the separator.
