CLUTCH PLATE AND PRESSURE PLATE

REMOVAL/REFITTING

  • Remove the differential-gearbox unit (see GROUP 21).
  • When replacing only the clutch plate, mark the corresponding position between the pressure plate and flywheel to simplify refitting operation.
  1. Install flywheel stopper tool no. 1.820.228.000.
  2. Install tool no. 1.820.126.000 in the clutch plate hub.
  3. Slacken the screws fastening the pressure plate to the flywheel.

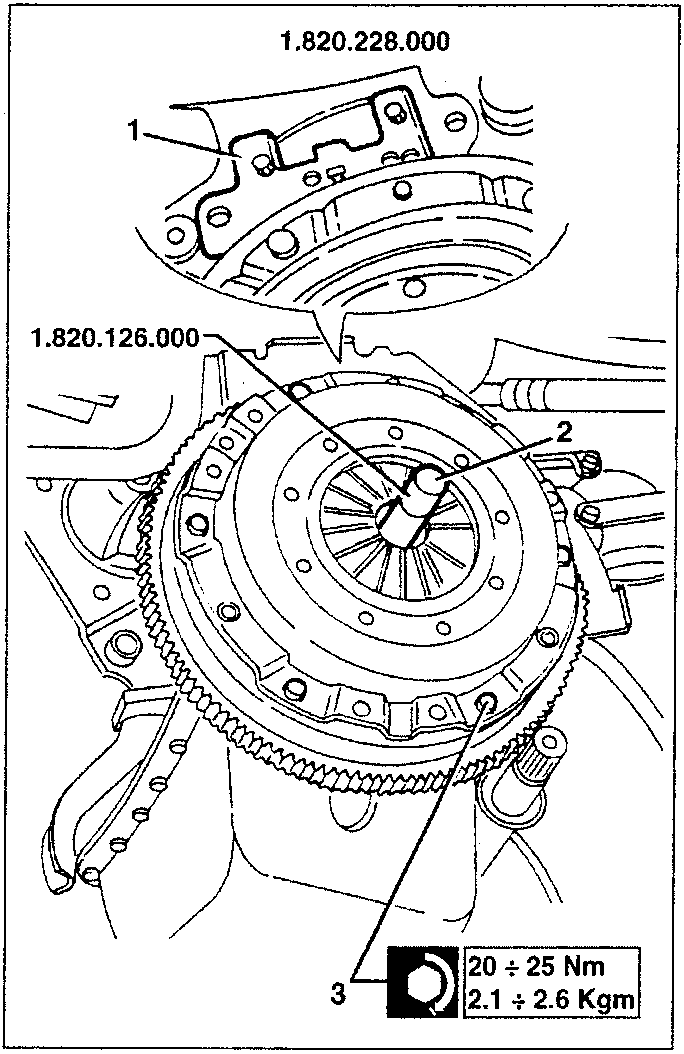

Clutch plate and pressure plate with tools installed, showing torque specification 20÷25 Nm / 2.1÷2.6 Kgm

20 ÷ 25 Nm
2.1 ÷ 2.6 Kgm

  1. Remove the pressure plate.
  2. Remove the clutch plate.

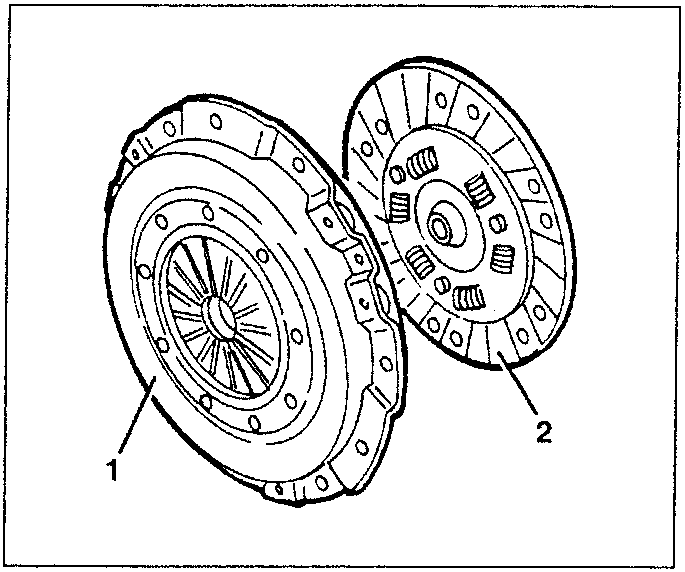

Clutch plate and pressure plate shown separately, labeled 1 and 2
  1. Withdraw the thrust bearing from its sleeve in the gearbox cover.

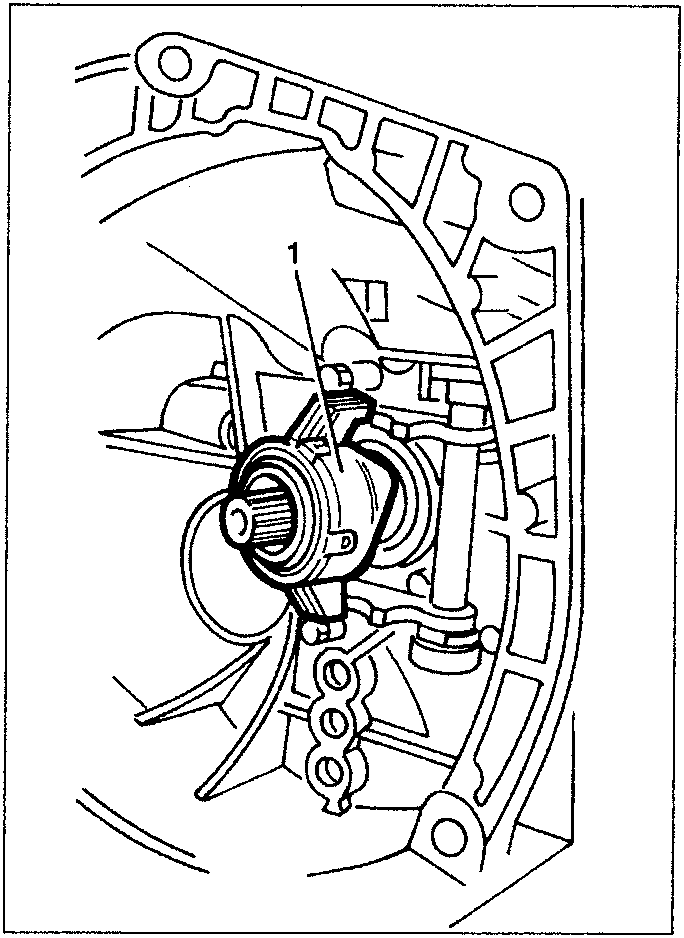

Thrust bearing being withdrawn from its sleeve in the gearbox cover

When refitting the bearing it must not stick or turn noisily, otherwise it must be replaced.
