Faultfinding table

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

55-18 hood › Faultfinding table

Electric system diagnosis – 1995-96 cars (incl. V6 Turbo and 24V)Faultfinding table · page 1 of 2

FAULTFINDING TABLE

Fault	Component to be checked
	G384	M26a	M26b	M27a	M27b	I106	I107a	I107b	B99	B100	N80
Hood release control	●	●	●			●			●
Hood cover release control (*)	●			●	●		●	●		●	●
Release switches lighting (with sidelights on) (**)									●	●

(*) N.B. this function can only be operated after releasing the hood.

(**) Switch B100 is only illuminated when hood cover releasing is possible (after the hood has been locked).

CHECK COMPONENTS

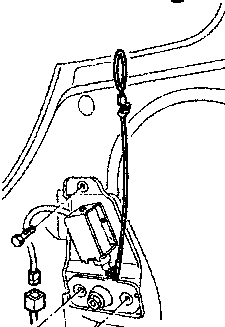

Hood release electromagnet M26a M26b

SPECIFICATIONS
Nominal voltage	12V
Absorbed current	31A
Magnetic core stroke	10 ± 0.5 mm

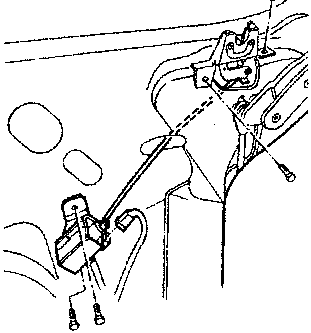

Hood cover release electromagnet M27a M27b

SPECIFICATIONS
Nominal voltage	12V
Absorbed current	31A
Magnetic core stroke	7 ± 0.5 mm

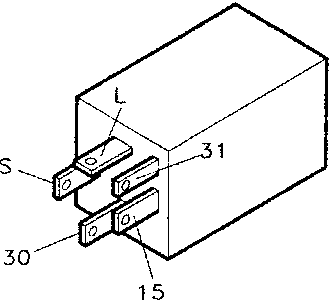

Hood cover release timer N80

Check the device: see TEST A

18 Diagnostics
