IGNITION COILS

REMOVING/REFITTING

  • Remove the intake box (see specific paragraph).
  1. Disconnect the electrical connections from the ignition coils of the right cylinder head.

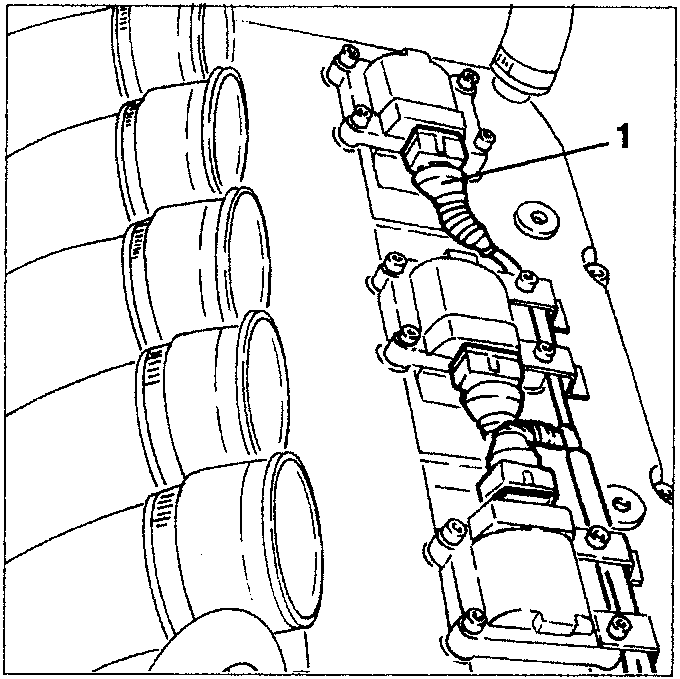

Right cylinder head with ignition coils and intake box
  1. Slacken the fastening screws and remove the ignition coils from the right cylinder head.

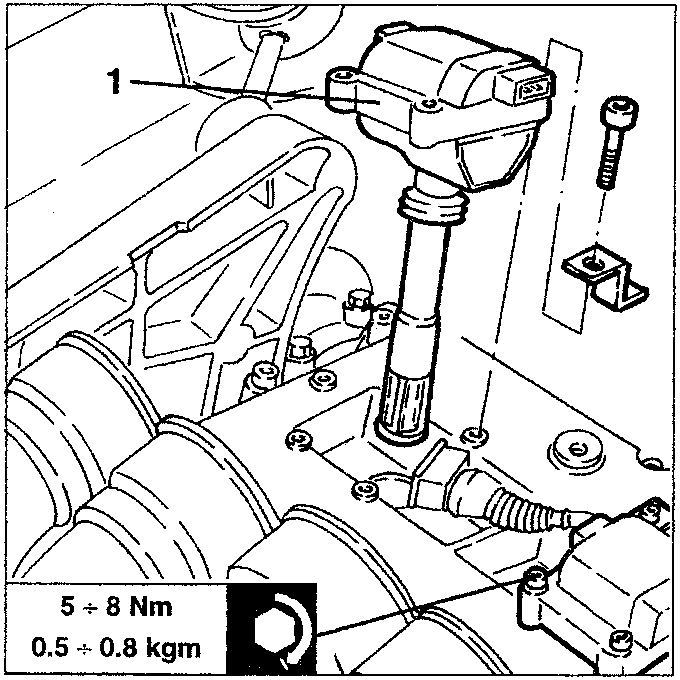

Right cylinder head with ignition coil removed, showing torque specification

5 ÷ 8 Nm
0.5 ÷ 0.8 kgm

  1. Slacken the fastening screws and remove the ignition coil cover of the left cylinder head.

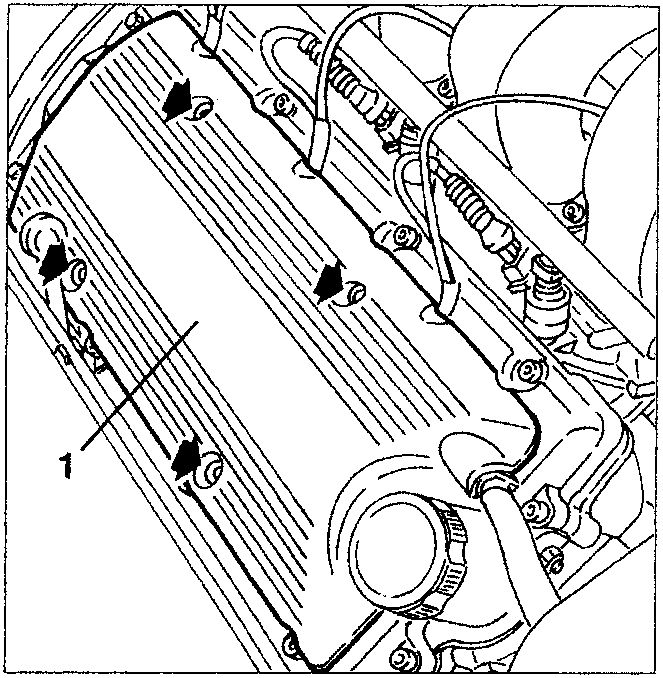

Left cylinder head with ignition coil cover
  1. Disconnect the electrical connections from the ignition coils of the left cylinder head.

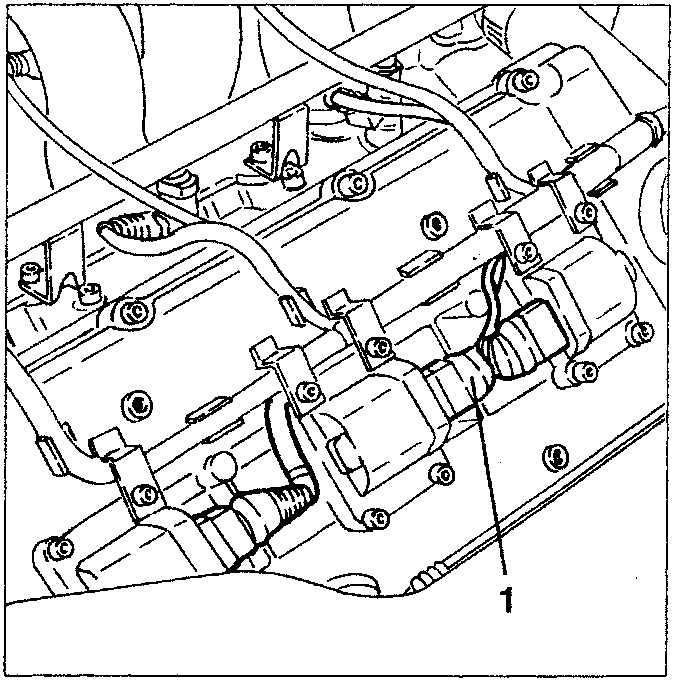

Left cylinder head with ignition coils
