Adjustment

– Remove the intake box (see specific paragraph).

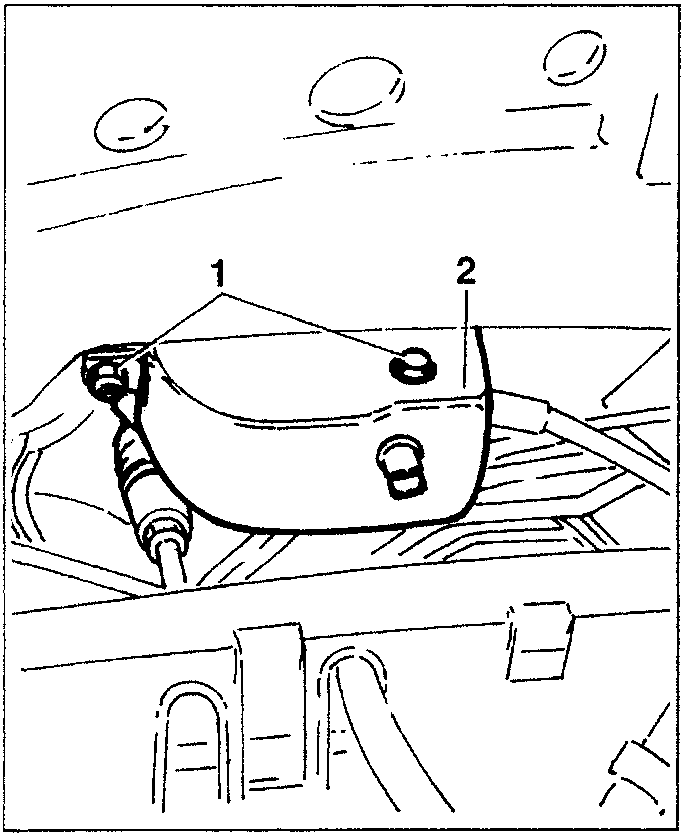

1. Working in the engine compartment, slacken the screw and nut fastening the transmission cover.
2. Remove the cover.

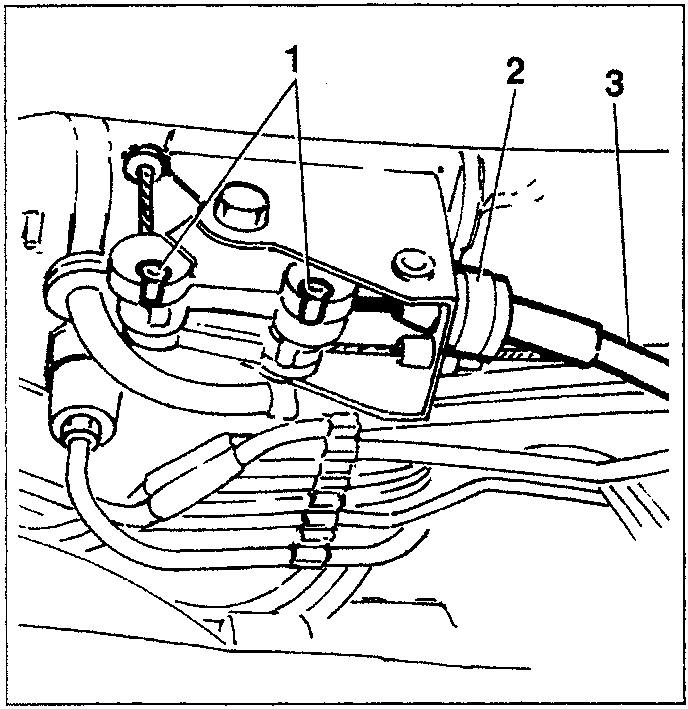

1. Free the accelerator cable pawls.
2. Free the sheath from the bracket.
3. Retrieve the sheath complete with cable.

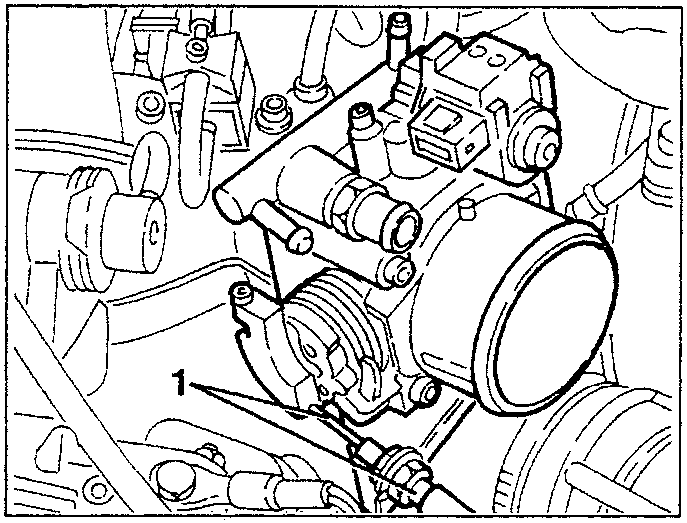

1. Disconnect the accelerator cable from the throttle. When refitting the cable adjust the accelerator control.

ADJUSTMENT

– Check that when the pedal is not pressed the throttle contacts against the stopper of idle speed.

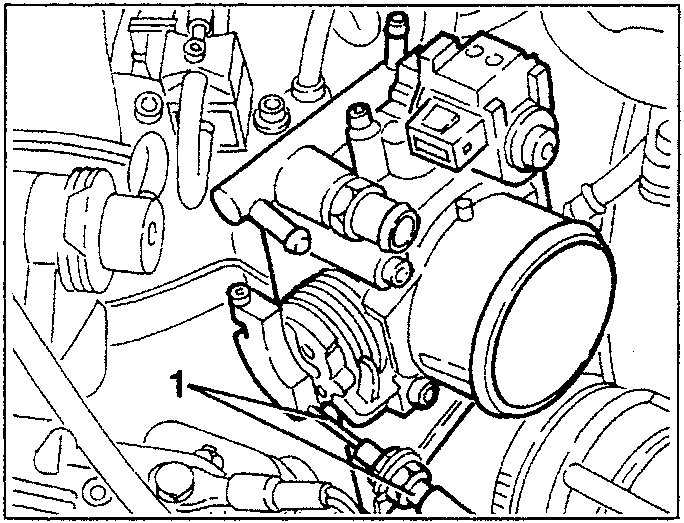

1. If not, work on the adjustment nuts of the sheath on the throttle body bracket.

– Check that when the pedal is depressed completely, the throttle reaches its contact against the maximum stop, without excessively tauting the cable.

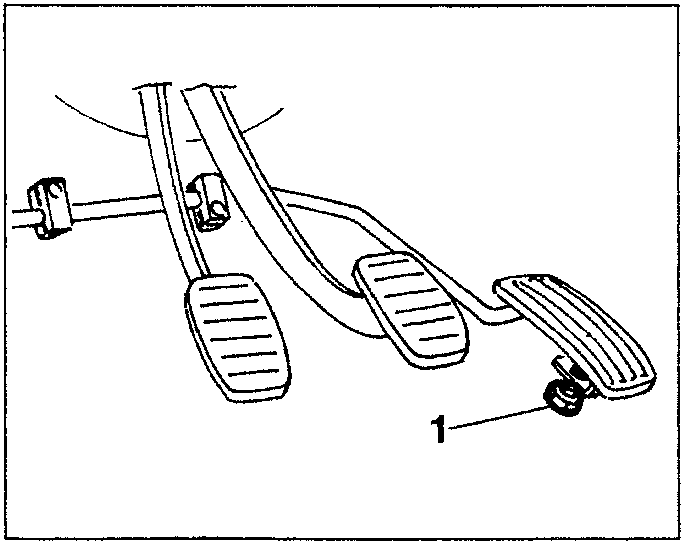

1. If not, work on the stop screw under the accelerator pedal.
