Right-hand drive variantsClutch pump

CLUTCH PUMP

REMOVAL/REFITTING

  • Drain the brake-clutch fluid reservoir using a suitable syringe.
  • Remove the intake box (see Group 10, specific paragraph).

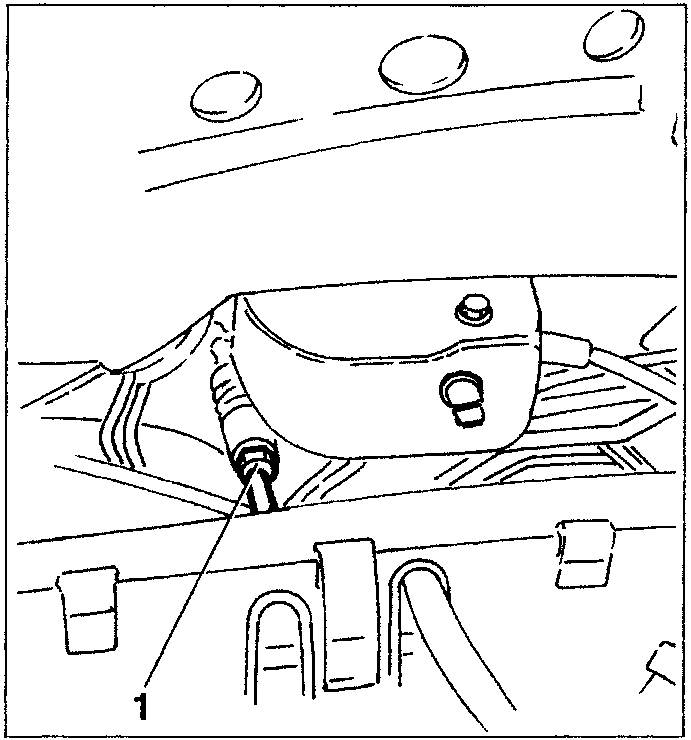

  1. Working from the engine compartment, remove the clutch pump fitting.
Clutch pump fitting removal view

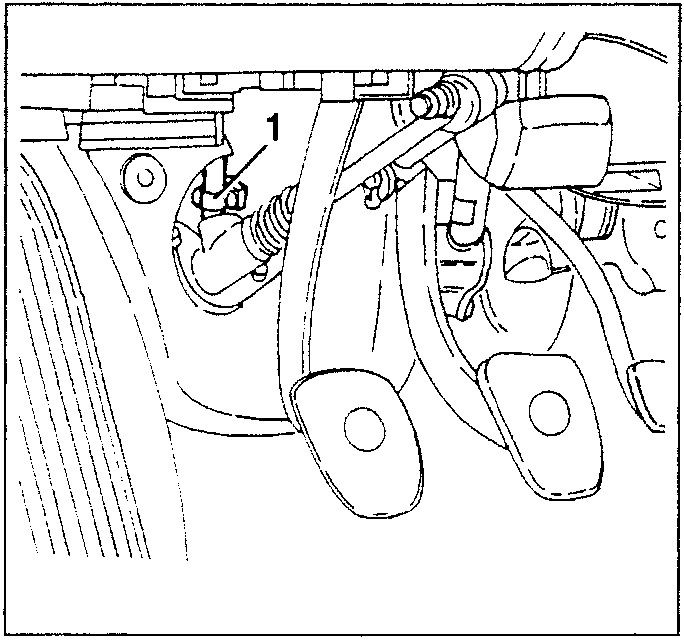

  1. Working from the passenger compartment, disconnect the reservoir connection pipe from the reservoir.
Reservoir connection pipe disconnection view

CLUTCH PEDAL

REMOVAL/REFITTING

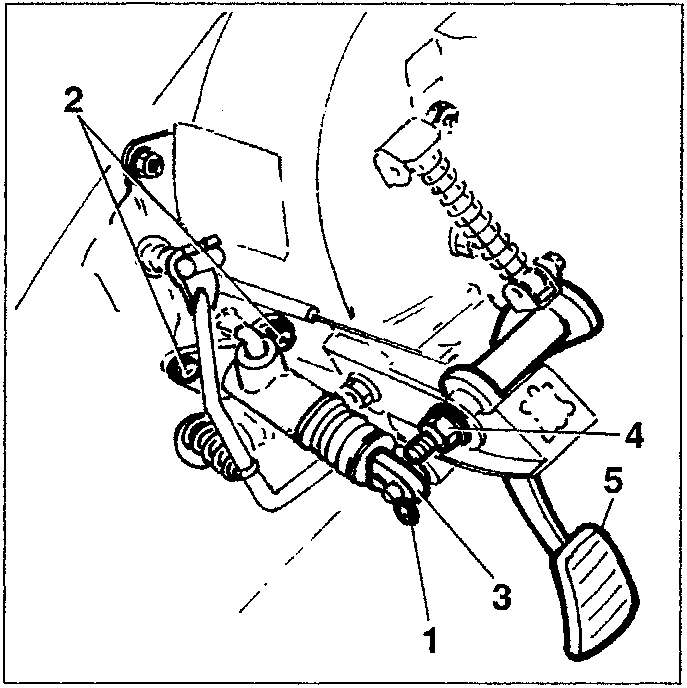

  1. Remove the split pin.
  2. Slacken the two nuts fastening the clutch pump.
  3. Free the pump drive shaft.
  4. Slacken and withdraw the pedal fastening bolt.
  5. Retrieve the clutch pedal.

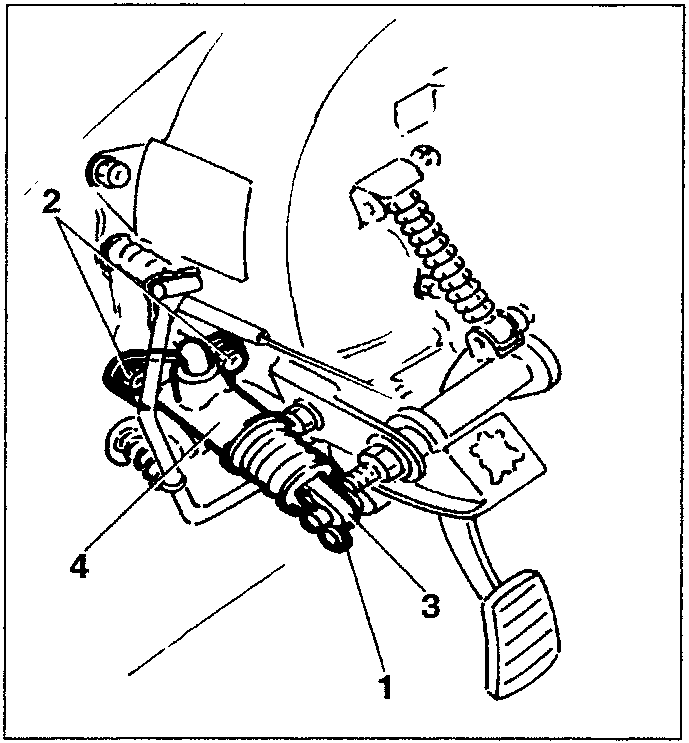

Clutch pump assembly diagram
Clutch pedal assembly diagram
