Steering column

STEERING COLUMN

REMOVAL/REFITTING

• Remove the steering wheel (see Base Manual).

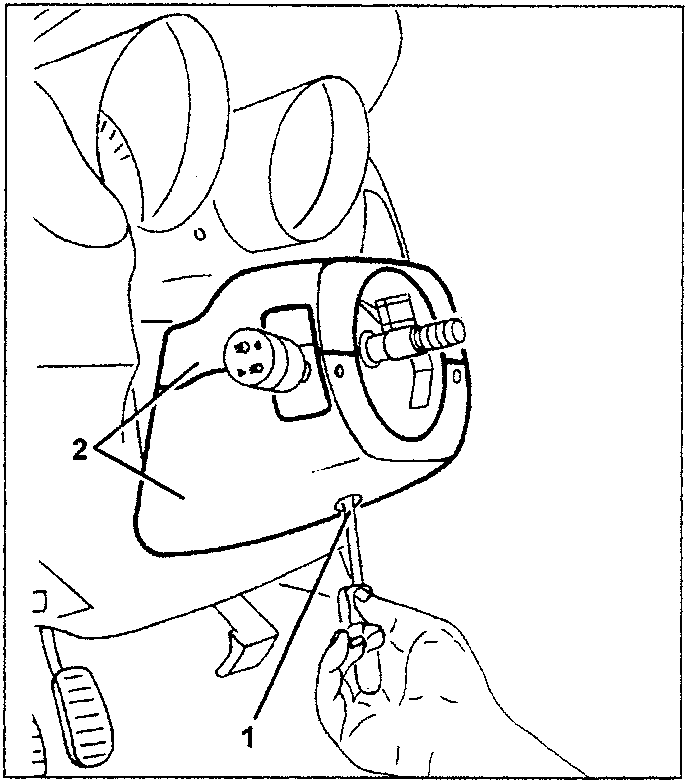

1. Slacken the steering column half cover fastening screws from below.
2. Retrieve the half covers.

• Remove the steering column lever unit (see GROUP 55, Base Manual).
• Remove the fusebox cover from the dashboard front panel (see GROUP 70, Base Manual).

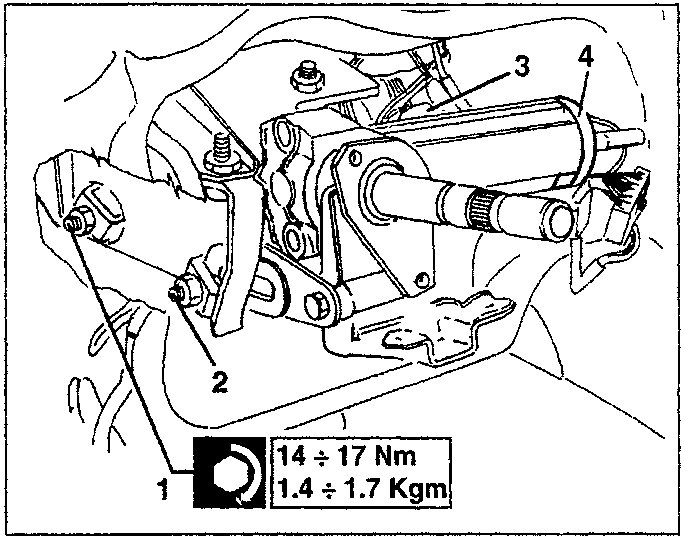

1. Slacken and remove the bolt of the lower slotted bracket for steering column axial adjustment.
2. Slacken the nuts of the upper slotted bracket.
3. Disconnect the connection from the ignition switch.
4. Withdraw the ALFA ROMEO CODE system aerial.

14 ÷ 17 Nm
1.4 ÷ 1.7 Kgm

DESCRIPTION

The power steering system reduces the effort at the steering wheel in manoeuvres at a standstill and keeps steering precise at high speeds.

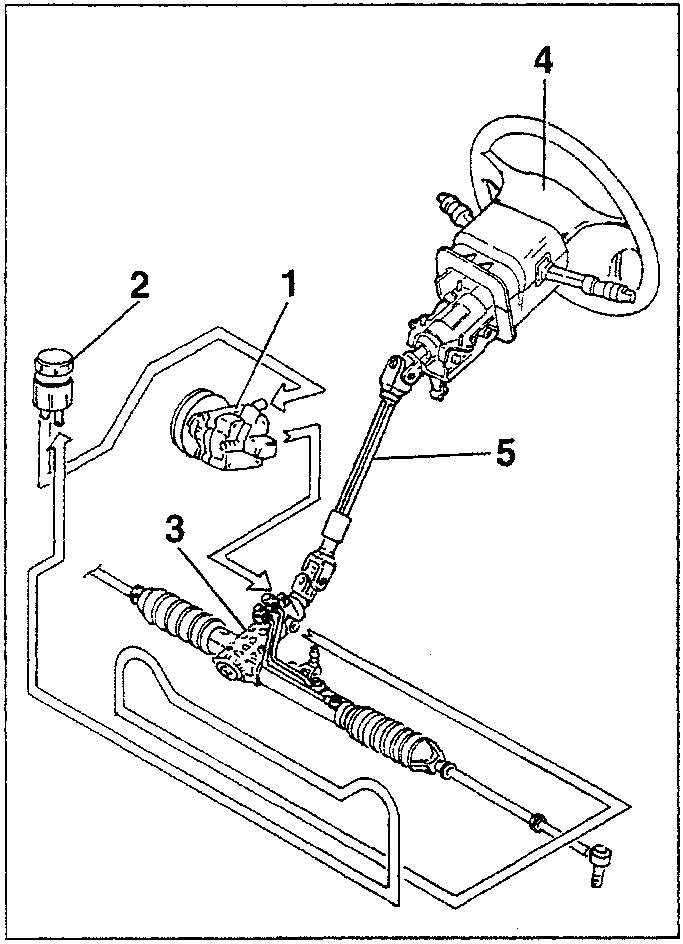

The system comprises a pump (1) operated directly by the engine through a belt. The pump withdraws oil from the reservoir (2) in the engine compartment through the inlet pipe and sends it under pressure through the delivery pipe to the distributor valve on the power steering box (3).

The distributor valve, which is controlled by the turning of the steering wheel, sends the oil under pressure from one side or the other of the hydraulic cylinder which is integral with the rack and pinion, inside the steering box.

A section of the return pipe to the reservoir is positioned in front of the radiator and it is struck by the cooling air to remove heat and keep the hydraulic fluid at the correct temperature level.

1. Pump
2. Reservoir
3. Steering box
4. Steering wheel
5. Sterring column
