Cam angle sensor

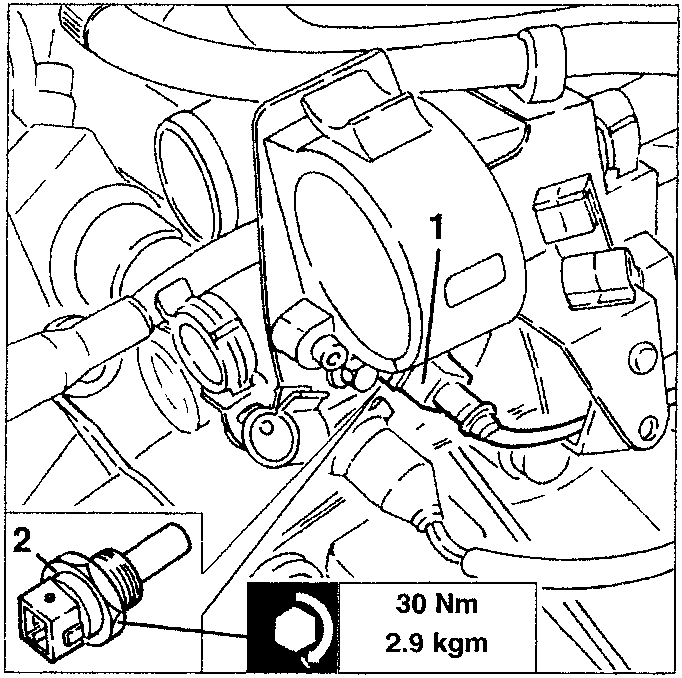

1. Disconnect the electrical connection from the engine coolant temperature sensor (NTC).
2. Slacken and remove the engine coolant temperature sensor (NTC) from the thermostatic cup.

30 Nm
2.9 kgm

CAM ANGLE SENSOR

The cam angle sensor comprises a Hall effect device. The voltage signal "lowers" sharply" when the peg machined on the exhaust camshaft of the right cylinder head facing the sensor passes in front of the sensor itself.

REMOVING/REFITTING

• Proceed as described in the first seven steps of the procedure "Engine coolant temperature sensor (NTC) - REmoving/Refitting".

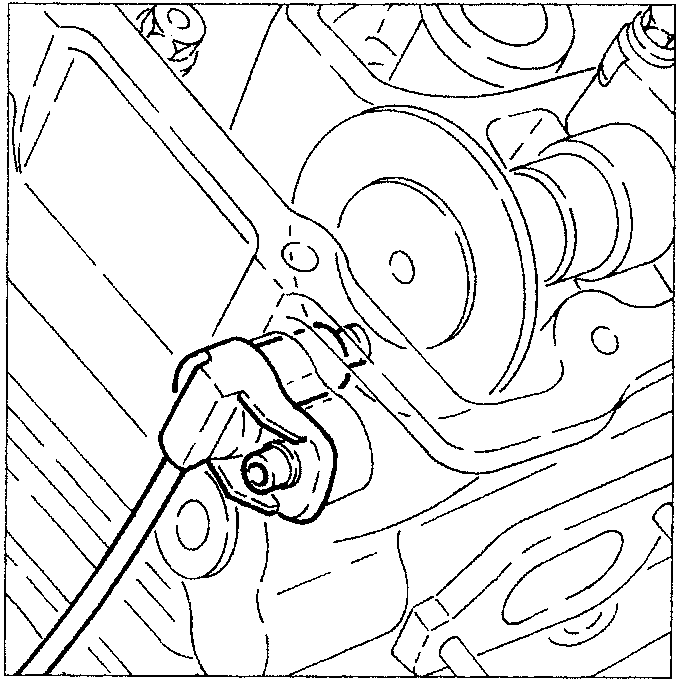

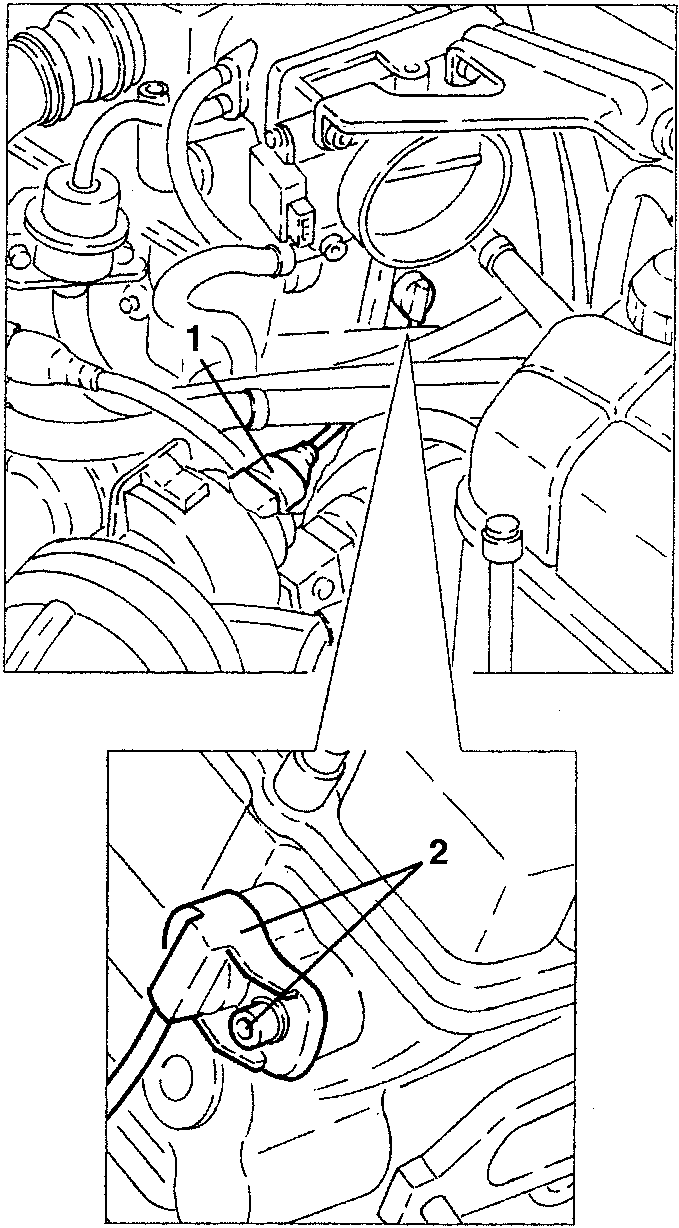

1. Disconnect the electrical connection of the cam angle sensor.
2. Slacken the fastening screw and remove the cam angle sensor complete with wiring from the right cylinder head.
