Checks and inspections

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Front brake unit › Checks and inspections

Variants – 3.0 V6 24VChecks and inspections

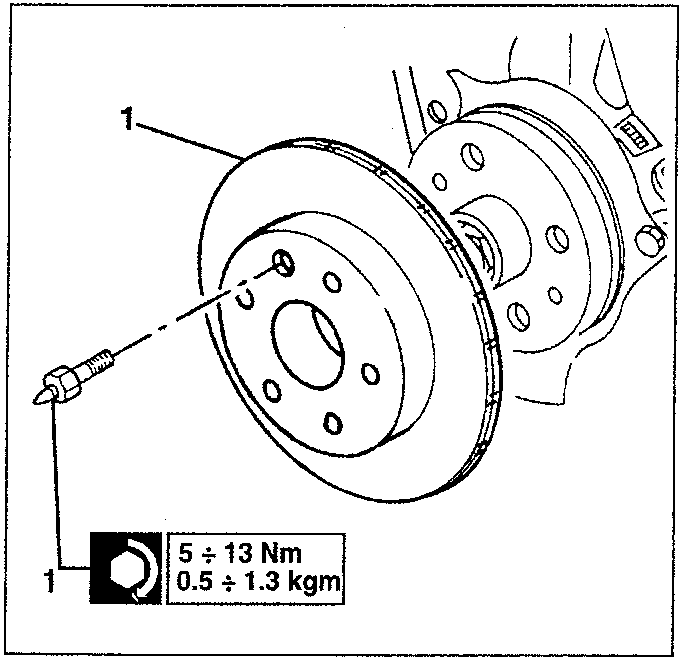

1. Slacken the fastening pin and remove the brake disk.

5 ÷ 13 Nm
0.5 ÷ 1.3 kgm

CHECKS AND INSPECTIONS

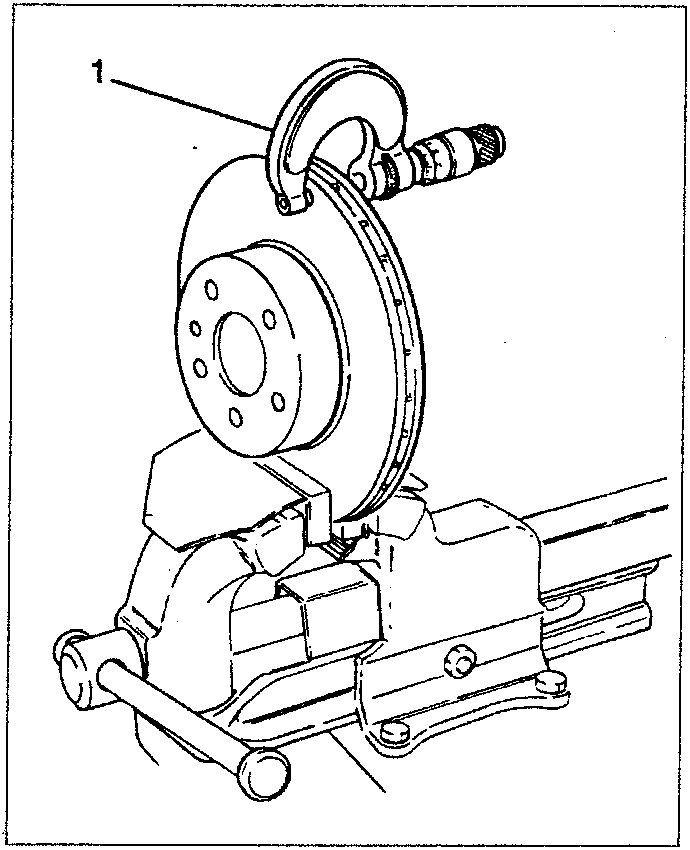

1. Check the thickness of the disks and that the working surfaces have no deep scores or porosity.

Thickness of disk	At wear limit
26.4 mm

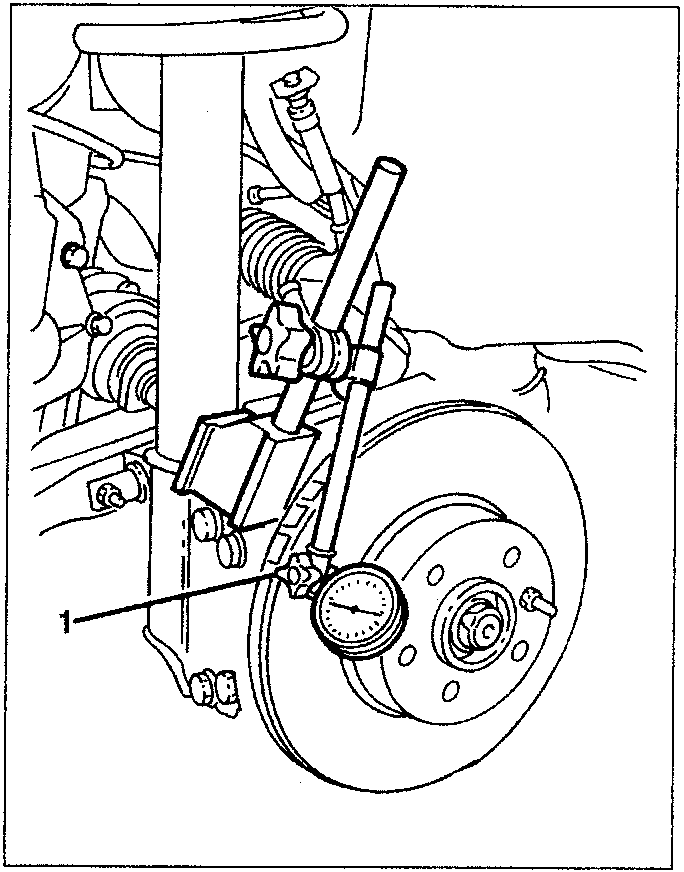

1. When replacing only the brake pads, check that disk oscillation in relation to the axis of rotation is within the specified limits (0.15 mm max).

NOTE: the value must be measured 2 mm from the disk outside diameter.
