Variants – 3.0 V6 24VFuel feed system description

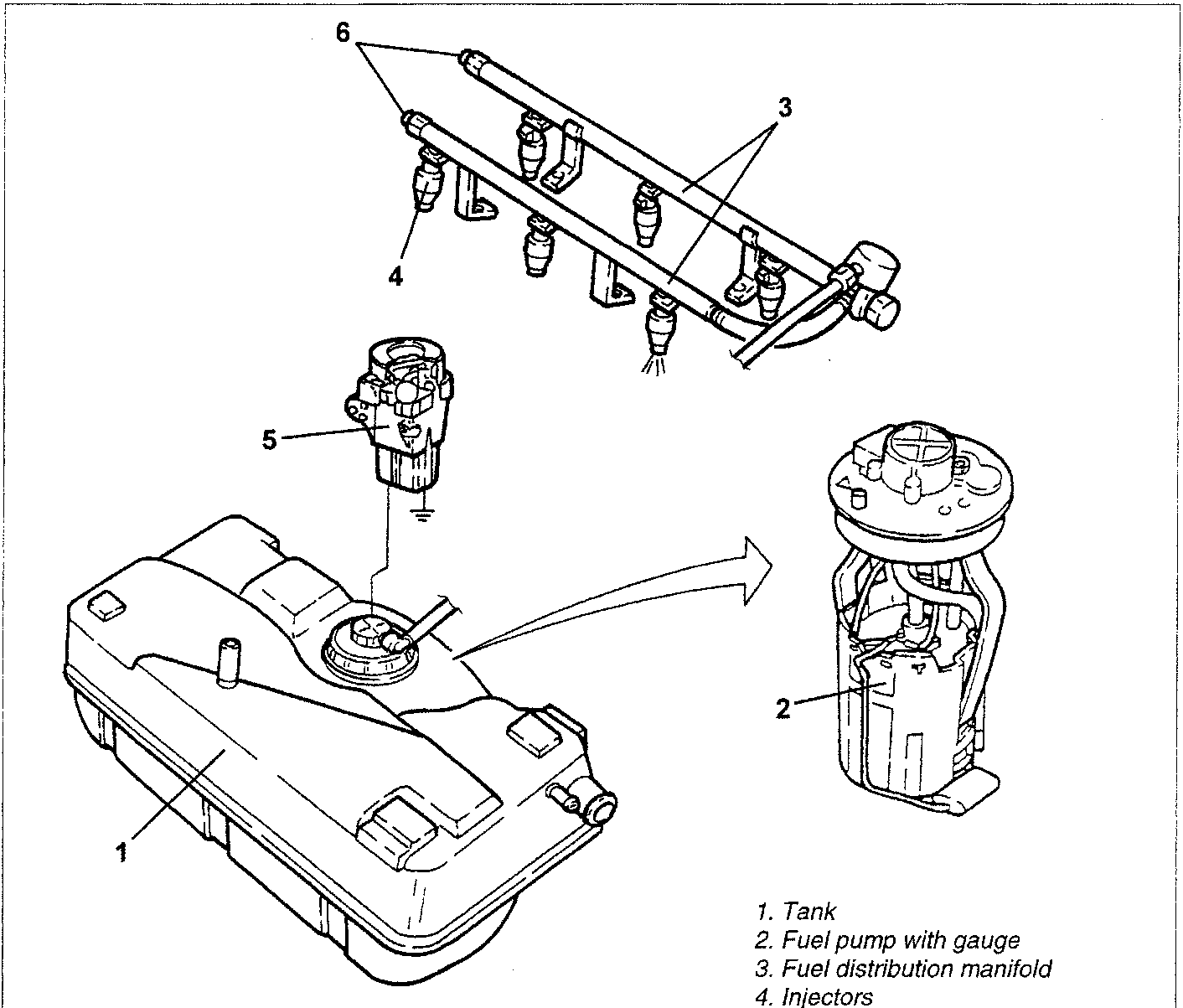

FUEL FEED SYSTEM DESCRIPTION
2. Fuel pump with gauge
3. Fuel distribution manifold
4. Injectors
5. Inertia switch
6. Fuel pressure drain valves
The fuel feed system is returnless, i.e. a single pipe connects the fuel pump and the engine. Advantages are:
- - reduced possibility of the car catching fire after an accident
- - reduced fuel vapour emission in the atmosphere.
The filler cap is fitted on the steel fuel tank main casing.
The electrical fuel pump is contained in a frame which also houses the following components:
- - fuel pressure regulator
- - fuel gauge
- - fuel filter.
The system is equipped with an inertia switch which cuts fuel pump power in the event of an impact.
