Model identification

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Vehicle (24V) › Model identification

Variants – 3.0 V6 24VModel identification

MODEL IDENTIFICATION

Brand name	GTV 3.0 24V
Version	Coupé
Version (on identification plate)	916C1
Chassis (in engine Compartment, on upper right-Hand shock absorber bracket)	-
Progressive chassis number	-
Engine (code)	AR 16102
Engine symbol	2959 24V
Gearbox (code)	C.503.5 C.530.6 (▲)

(▲): For '98 models

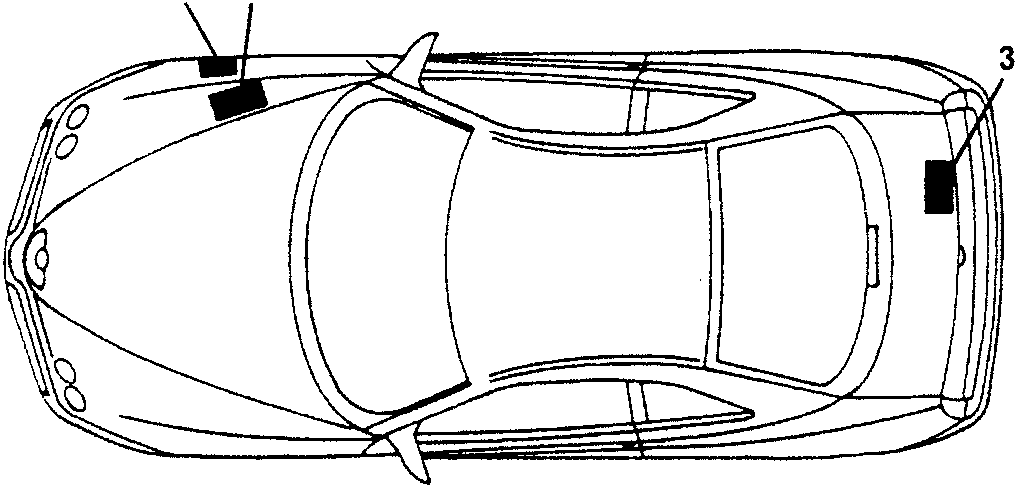

IDENTIFICATION PLATE LOCATION

1. Identification data plate
2. Chassis marking
3. Paintwork identification plate

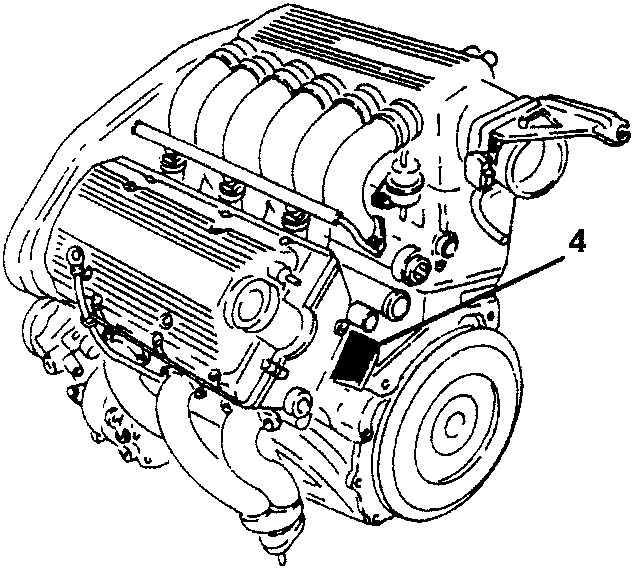

4. Engine marking
