How to Use Wiring Diagrams|Page 4061 > < U.S. Models|Page 4055

4000S Quattro L5-2144cc 2.14L SOHC (JT) (1985)

  • Lighting and Horns
  • Dome Lamp
  • Component Information
  • Diagrams
  • Diagram Information and Instructions
  • How to Use Wiring Diagrams

Page 1
background image

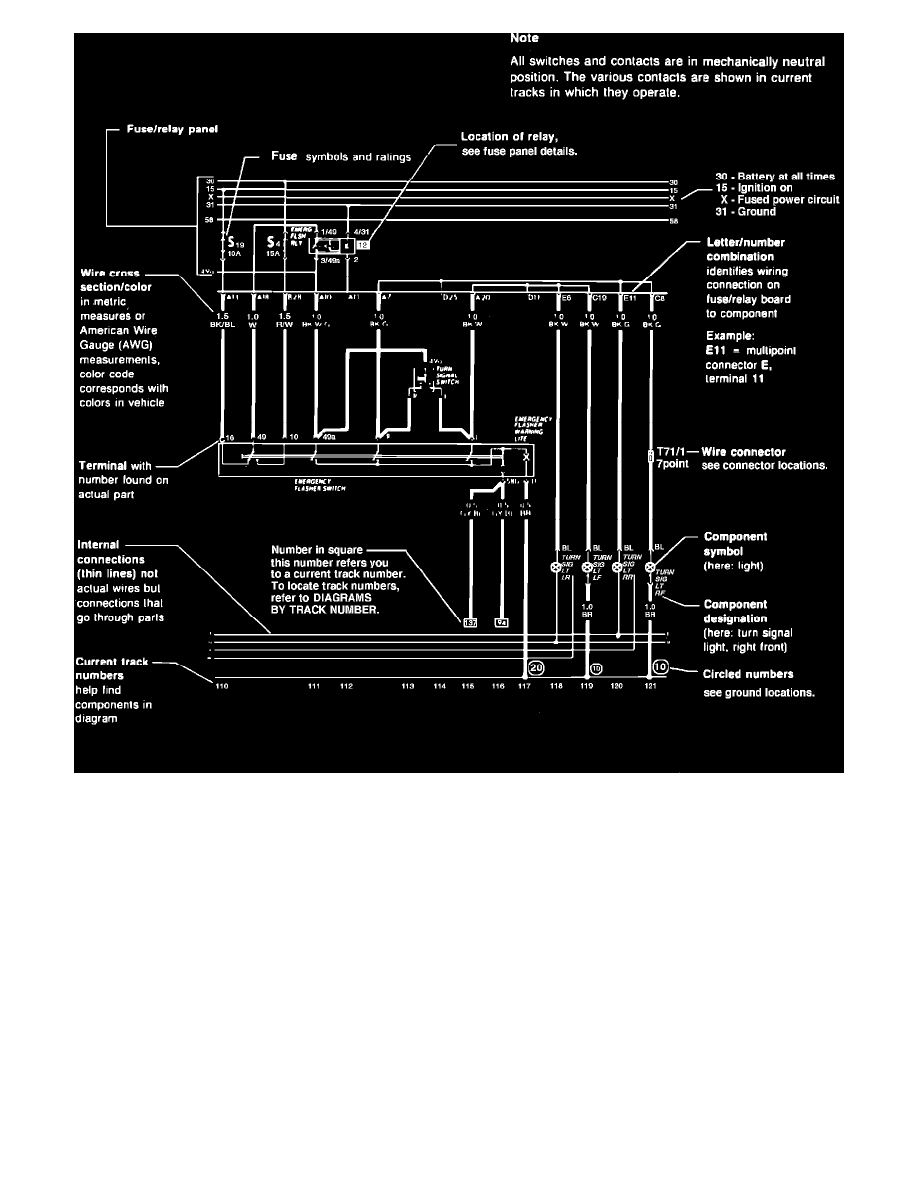

Sample Wiring Diagram

  • Lighting and Horns
  • Dome Lamp
  • Component Information
  • Diagrams
  • Diagram Information and Instructions
  • How to Use Wiring Diagrams

How to Use Wiring Diagrams|Page 4061 > < U.S. Models|Page 4055
