4000S Quattro L5-2144cc 2.14L SOHC (JT) (1985)

  • Lighting and Horns
  • Fog/Driving Lamp
  • Fog/Driving Lamp Relay
  • Component Information
  • Locations

Page 1
background image

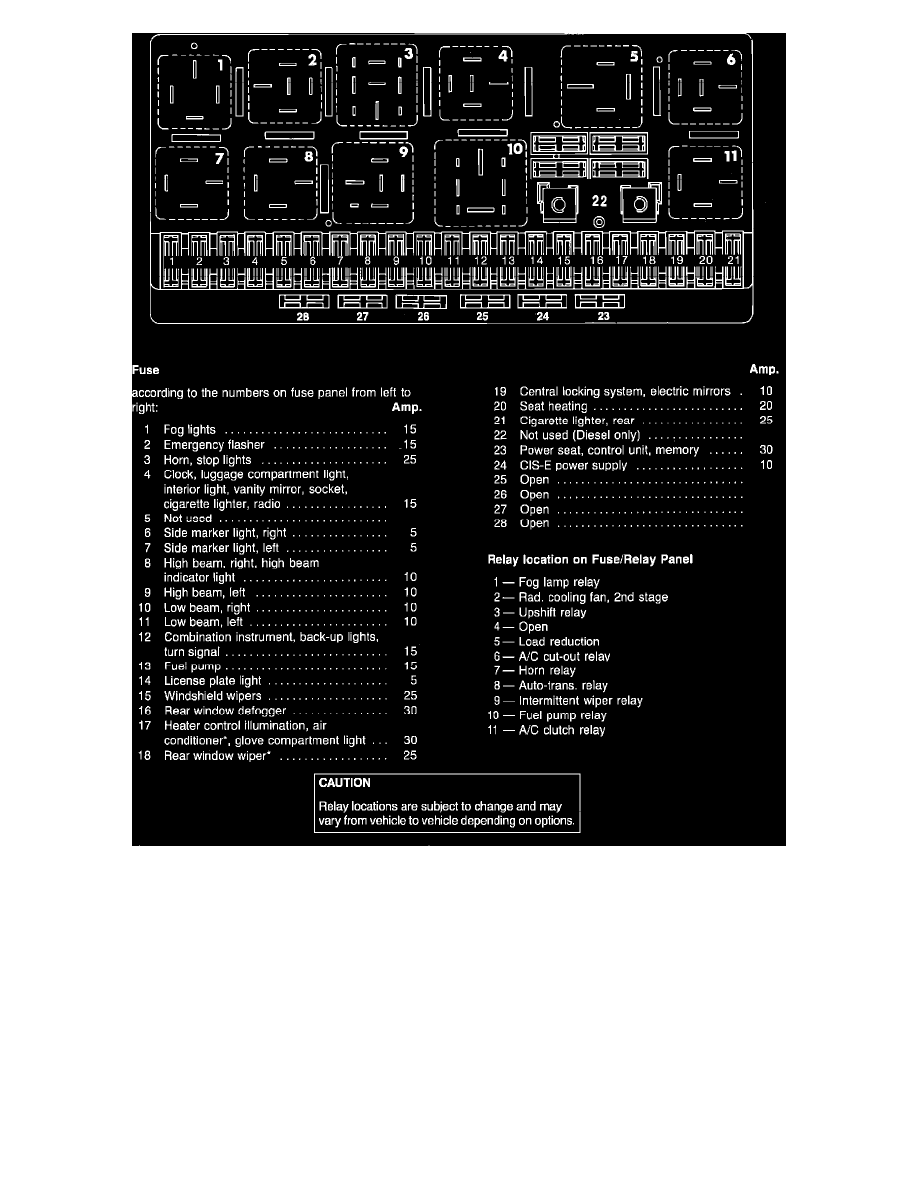

Fig. 30  Fuse/Relay Panel
