Timing Component Alignment Marks: Locations
- Make
- Audi
- Model
- 90 CS Quattro
- Engine
- V6-2.8L (AFC)
- Year
- 1995
- Section
- Timing Component Alignment Marks › Locations
MaintenanceLocations
/Page-303001.png)
Timing Component Alignment Marks: Locations

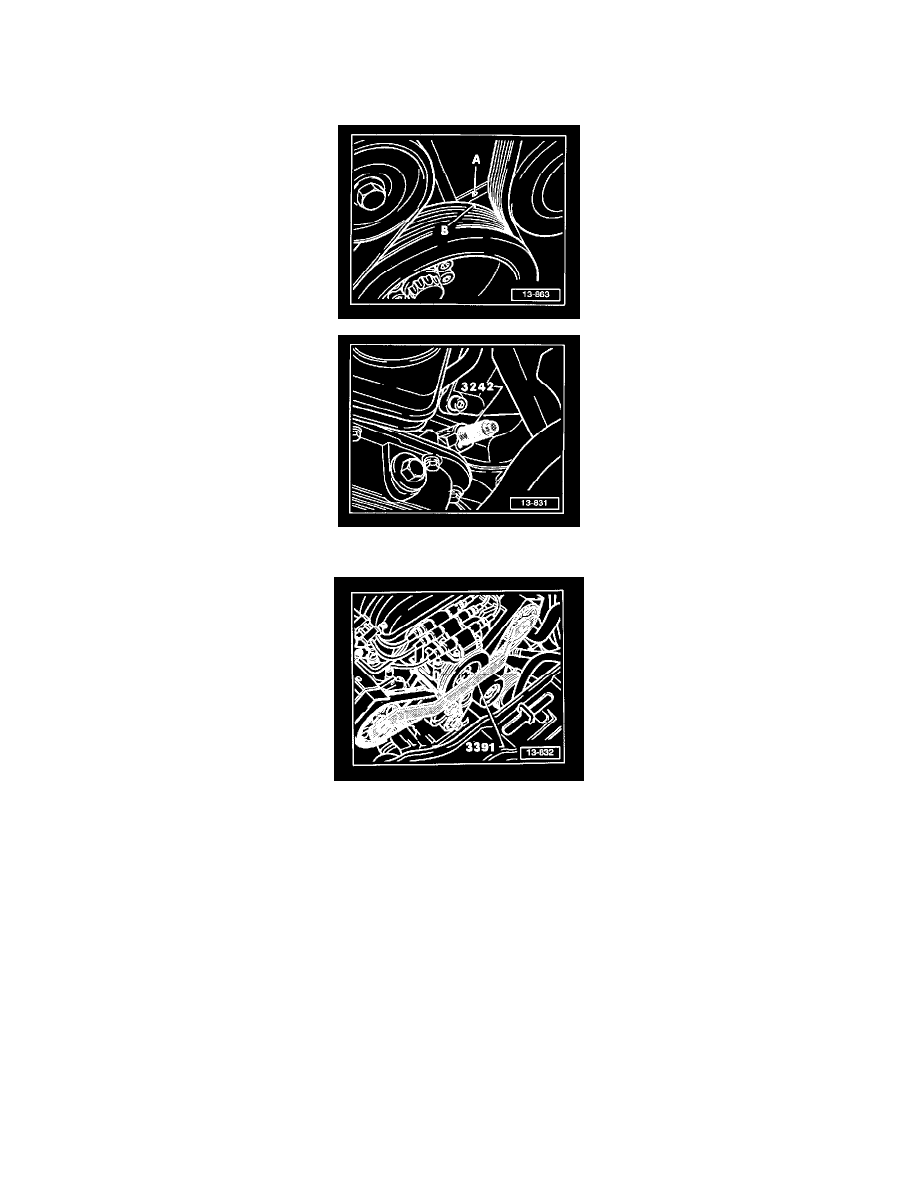

There are no alignment marks on the camshafts, you must use the camshaft holder tool 3243 in conjunction with the crankshaft holder tool
3242 to properly align the camshaft and crankshaft
Crankshaft Holder 3242 Shown In Installed Position
Camshaft Holder 3243 Shown In Installed Position
CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.
For complete Timing Belt Removal and Installation information: See: Toothed Belt/Service and Repair
