Removing and installing cup holder
Removing and installing cup holder
Special tools and workshop equipment required

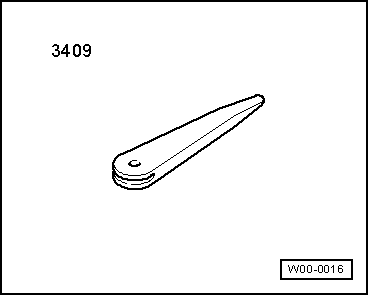

t  Removal wedge -3409-
  W00-0016
Removing
–  Equipment version with ashtray: Remove the ashtray → Chapter.
–  Use a screwdriver to lift up the lining mat -1- and detach.
–  Prise off the cup holder -2- using the removal wedge -3409--arrow- and detach.
Installing
Install in reverse order.
Notes on installation: For example tightening torques, component replacement → Chapter.
  A68-10523
