Removing and installing trim frame
Removing and installing trim frame
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

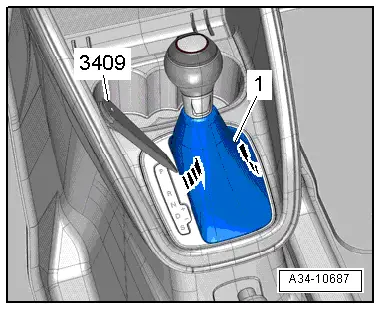

–  Lift off the gear or selector lever boot -1- using the removal wedge -3409--arrows-, pull upwards and fold over the gear stick knob/selector lever knob.
  A34-10687

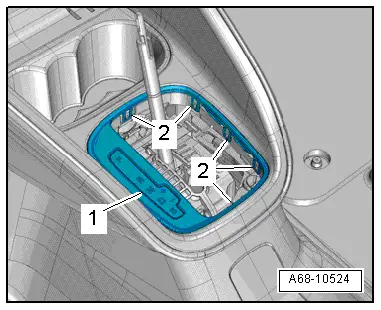

–  Carefully release the trim frame -1- at the fasteners -2- and lift off.
–  Unplug the connector.
Installing
Install in reverse order.
Notes on installation: For example tightening torques, component replacement → Chapter.
  A68-10524
