Removing and installing centre flap control motorV70
Removing and installing centre flap control motor -V70-
  Note
Depending on the operating unit, Climatronic control unit -J255-, the centre flap control motor -V70- on vehicles manufactured in 2010 may also be displayed as air distribution flap control motor -V428- for example → Vehicle diagnostic tester, „Guided fault-finding“ function.

Removing
–  Remove the air conditioning unit → Chapter.
–  Remove the air distribution housing → Chapter.

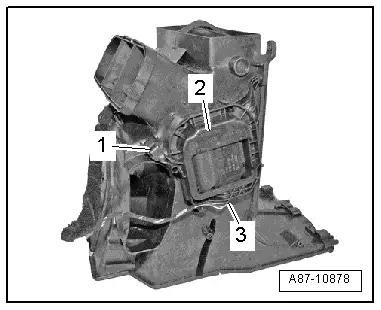

–  Unplug the connector -3-.
–  Release the locking lug -1-.
–  Swivel out the mount -2- for the control motor and disengage.
  A87-10878

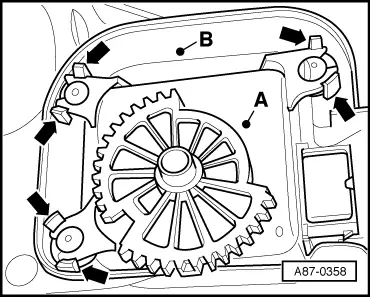

–  Carefully press the retainer tabs -arrows- outwards and take the control motor -A- out of the holder -B-.
Installing
Install in reverse order, paying attention to the following:
  Note
The control motor mount must be replaced if the retainer tabs in the mount have broken off.
–  Insert the new control motor -A- in the mount -B-.
  A87-0358

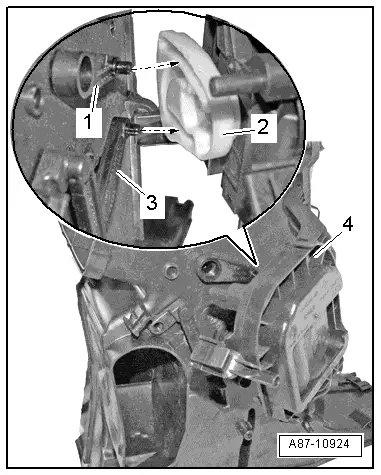

–  Position the mount -4- with the control motor at the housing.
l  The lever -1- must engage in the upper guide of the cam plate -2-.
l  The lever -3- must engage in the lower guide of the cam plate.
–  Press the mount with control motor fully onto the housing.
–  Route the wiring harness such that it cannot come into contact with moving components (e.g. control motor lever).
–  To check operation of the control motor, connect an adapter cable → Chapter or use a test lead from the adapter set -V.A.G 1594C- to connect contacts „5“ and „6“ of the control motor by way of a 5 A fuse to a 12 V battery.
  Note
Allow the control motor to turn as far as the stop. The direction of rotation can be reversed by interchanging positive and negative.
–  Fit the air distribution housing → Chapter.
On completion of repair work, perform the following operations on the operating unit in the „Guided fault-finding“ function → Vehicle diagnostic tester:
–  Interrogate the event recorder and delete any entries displayed.
–  Perform basic setting.
–  Perform final control diagnosis.
  A87-10924
