Removing and installing fresh air blowerV2 > < Removing and installing air recirculation flap control motorV113

A1

Removing and installing fresh air blower control unitJ126
Removing and installing fresh air blower control unit -J126-

Removing
–  Remove the fresh air blower → Chapter.
–  Unplug the connector -2-.
–  Remove the dust and pollen filter → Chapter.
–  Screw out the bolt -4-.
  WARNING
Risk of burns.
The heat sink at the fresh air blower control unit -J126- may be hot.
–  Press the fresh air blower control unit -J126--Item 3- inwards and take out -arrow- at the opening for the fresh air blower -1-.
Installing
Install in reverse order, paying attention to the following:
–  Tighten the bolt -4- to 1.5 Nm.
–  Install the dust and pollen filter → Chapter.
–  Fit the fresh air blower → Chapter.
–  Check operation of the fresh air blower control unit -J126-.
On completion of repair work, perform the following operations on the operating unit, Climatronic control unit -J255- in the „Guided fault-finding“ function → Vehicle diagnostic tester:
–  Interrogate the event recorder and delete any entries displayed.
–  Perform basic setting.
–  Perform final control diagnosis.

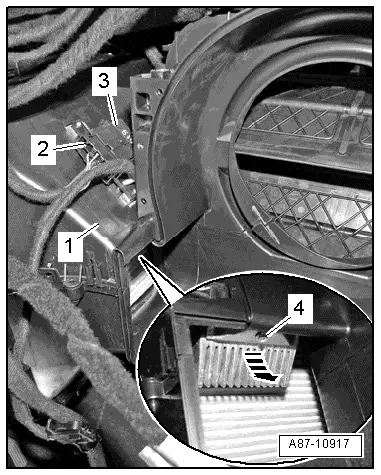

  A87-10917
