| Remove the operating unit, Climatronic control unit -J255- → Chapter. |
| –
| Screw out the bolts -2, 4-. |
| –

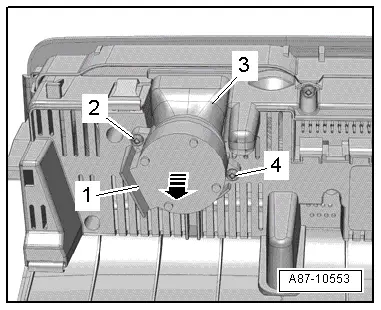

| Pull the temperature sensor blower -V42--Item 1- out of the operating unit, Climatronic control unit -J255--Item 3--arrow-. |
Note | When installing the temperature sensor blower -V42-, do not press on the motor but rather hold at the housing. |
| Install in reverse order, paying attention to the following: |
| –
| Tighten the bolts -2, 4- to 0.8 Nm. |
| –
| Fit the operating unit, Climatronic control unit -J255- → Chapter. |
|
|
|
