Removing and installing frame for operating unit, air conditioning system control unitJ301 - manually controlled air conditioner
Removing and installing frame for operating unit, air conditioning system control unit -J301- - manually controlled air conditioner

Removing
–  Remove the controls for the operating unit, air conditioning system control unit -J301- → Chapter.
–  Release the fasteners -1-.
–  Detach -arrows- the frame -2-.
Installing
Install in reverse order, paying attention to the following:
–  Fit the controls for the operating unit, air conditioning system control unit -J301- → Chapter.

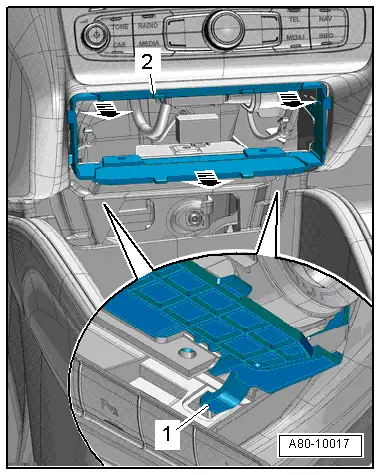

  A80-10017
