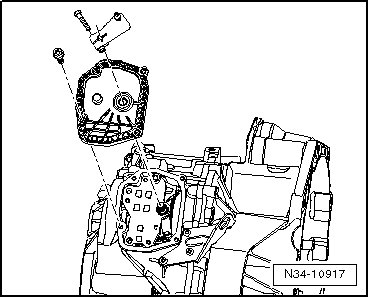

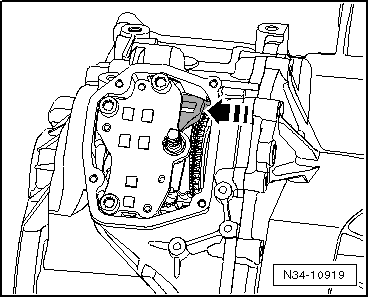

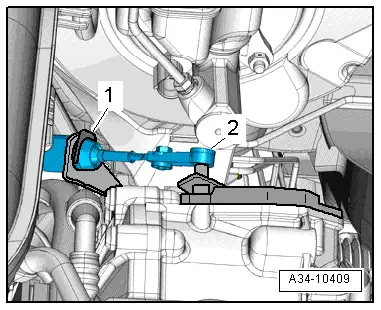

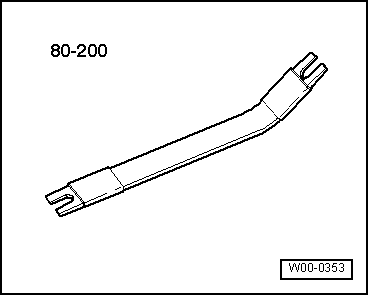

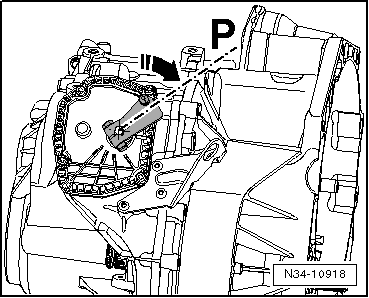

| Exploded view - mechatronic unit for dual clutch gearbox -J743- |
| 1 - | Bolt |
| q | 8 Nm |
| 2 - | Cover |
| q | Over clutch actuator levers |
| q | Depending on version |
| 3 - | Bolt |
| q | Qty. 3, M8 x 35 |
| q | Renew |
| q | Tightening torque and sequence → Fig. |
| 4 - | Bolt |
| q | Qty. 4, M8 x 90 |
| q | Renew |
| q | Tightening torque and sequence → Fig. |
| 5 - | Mechatronic unit for dual clutch gearbox -J743- |
| q | → Chapter „Safety notes on mechatronic unit for dual clutch gearbox -J743-“ |
| q | → Chapter „Removing and installing mechatronic unit for dual clutch gearbox -J743- with gearbox installed“ |
| q | → Chapter „Moving mechatronic unit for dual clutch gearbox -J743- into removal position by hand“ |

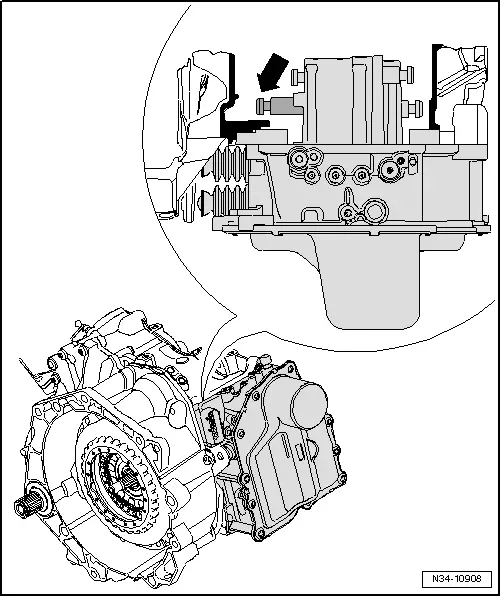

Note
|
|
| Stage | Bolts | Tightening torque |
| 1. | -A- | Screw in bolts by hand until they make contact |
| 2. | Remove guide pin -T10406- | |
| 3. | -B- | Screw in bolts by hand until they make contact |
| 4. | -A, B- | 10 Nm in diagonal sequence |
