Infotainment › Telephone system › Overview

Vehicle electricsOverview

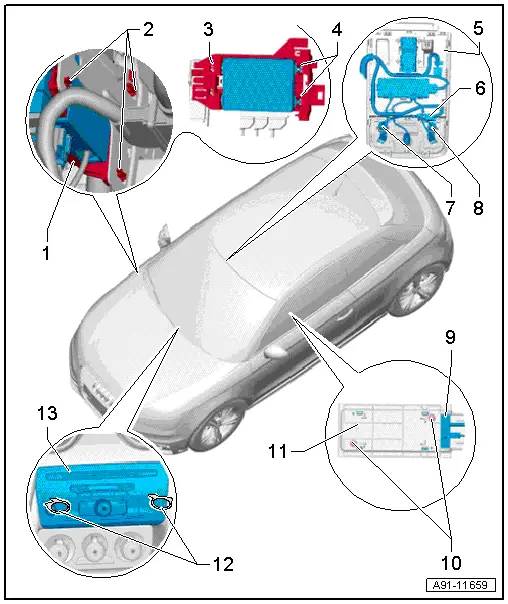

Overview

1 -	Aerial amplifier for mobile telephone -R86-

q	Pin assignment → Chapter

q	Removing and installing → Chapter

2 -	Lugs on bracket

3 -

Bracket

4 -

Lugs

5 -	Front interior light -W1-

q	Overview → Chapter

6 -	Multi-pin connector, 4-pin (T4bg)

7 -	Telephone microphone -R38-

q	Overview → Chapter

q	Removing and installing → Chapter

8 -	Internal microphone -R74-

q	Overview → Chapter

q	Removing and installing → Chapter

9 -	Telephone bracket -R126-

q	Removing and installing → Chapter

10 -

Bolt

q

1 Nm

11 -	Mounting for telephone/mobile phone

12 -	Radio release tool -T10057-

13 -	Control unit 1 for information electronics -J794- (concert/MMI MOST)

q	Pin assignment for mobile phone pre-installation (concert MOST) → Chapter

q	Pin assignment for mobile phone pre-installation (MMI) → Chapter

q	Pin assignment for Bluetooth hands-free system (concert MOST) → Chapter

q	Pin assignment for Bluetooth hands-free system (MMI) → Chapter

q	Removing and installing → Chapter
