Removing and installing rear window wiper motorV12 > < Removing and installing wiper arm

A1

Adjusting wiper arm
Adjusting wiper arm

Procedure
–  Remove wiper arm → Chapter.
–  Switch on ignition.
–  Actuate „rear wiper“ and allow wiper arm to move to end position.
–  Switch off ignition.
–  Apply wiper arm with wiper blade fitted at wiper shaft and align wiper blade on rear window as follows.
l  Dimension -a- = 25 + 5 mm
  Note
The dimension indicates distance between tip of wiper blade and bottom edge of window.
–  Tighten nut for wiper arm.
l  Tightening torque → Chapter
–  Switch on ignition.
–  Actuate „rear wiper“ and allow wiper arm to move to end position.
–  Check setting of wiper arm again and correct if necessary.

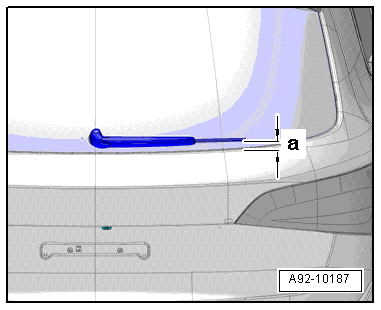

  A92-10187
