A2

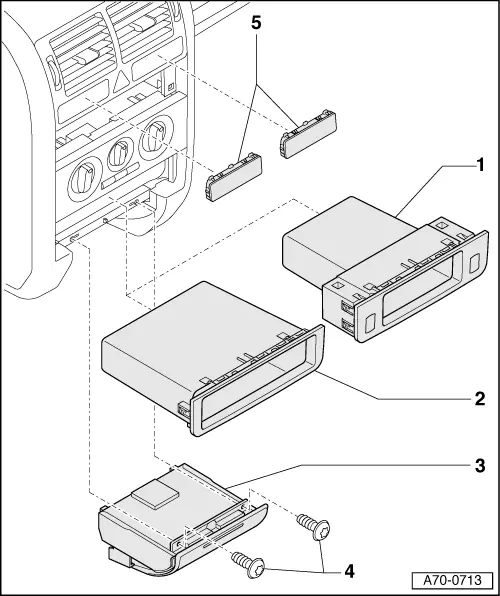

| Removing ashtray and storage compartment |
| 1 - | Storage compartment |
| q | Open ashtray. |
| q | Reach with both hands into storage compartment -1-, move hands apart and pull out storage compartment -1-. |
| q | Unplug heated seat switch connectors. |
| 2 - | Storage compartment |
| q | Reach with both hands into storage compartment -2-, move hands apart and pull out storage compartment -2-. |
| 3 - | Ashtray |
| t | Storage compartment -1-/storage compartment -2- removed |
| – | Unscrew bolts -4- (2x). |
| – | Unplug connector to ashtray light. |
| 4 - | Bolts (2x) |
| 5 - | Cover |
| q | For vehicles with no cup holder |
| q | Unclip cover. |
