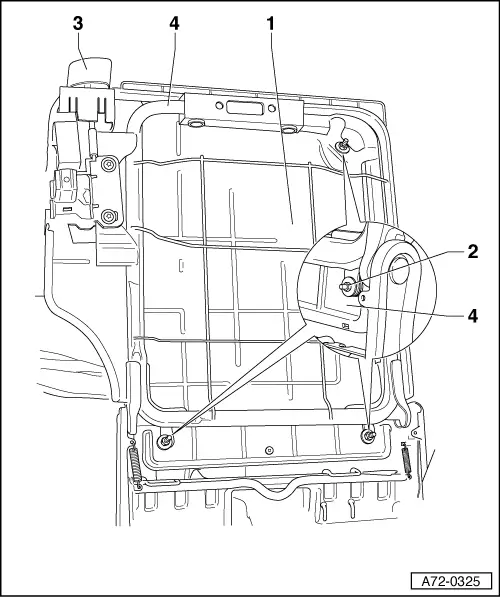

| Removing and installing backrest section cover panel |
| 1 - | Backrest section cover panel |
| t | Removing |
| – | Remove split rear seat → Chapter. |
| – | Release rear seat backrest → Chapter. |
| – | Detach padding from backrest section of split rear seat → Chapter. |
| – | Unscrew nuts -2- (3x). |
| – | Lift out backrest section cover panel -1- over release handle -3-. |
| t | Installing |
| – | Install backrest section cover panel -1- and loosely screw on nuts -2-. |
| – | Fit seat in vehicle and align backrest section cover panel in parallel with adjacent seat. |
| – | Tighten nuts -2-. |
| 2 - | Bolts (3x) |
| 3 - | Upper release lever |
| 4 - | Rear seat frame |
