A2

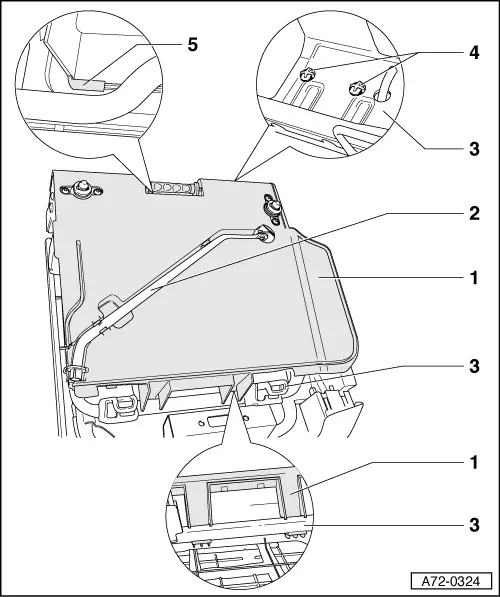

| Removing and installing seat cushion cover panel |
| 1 - | Seat cushion cover panel |
| q | Remove split rear seat → Chapter. |
| q | Release rear seat backrest → Chapter. |
| q | Detach padding from cushion of split rear seat → Chapter. |
| q | Fold out support -2-. |
| q | Disengage webs -5-. |
| q | Release retainer tabs -4- (4x). |
| q | Disengage seat cushion cover panel -1- at front from rear seat frame -3-. |
| 2 - | Support |
| 3 - | Rear seat frame |
| 4 - | Retainer tabs |
