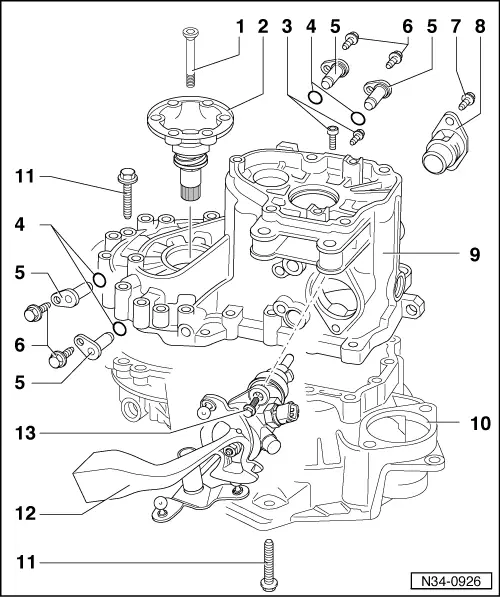

Exploded view - removing and installing gearbox housing and selector mechanism |
1 - | Countersunk bolt |
q | 25 Nm |
2 - | Flange shaft with spring |
q | Removing and installing → Chapter |
q | Assembling → Item |
3 - | Torx socket head bolt |
q | 30 Nm |
q | For reverse shaft support |
q | Self-locking |
q | Always renew |
4 - | O-ring |
q | Always renew |
5 - | Pivot pin |
6 - | Bolt |
q | 25 Nm |
7 - | Bolt |
q | 25 Nm |
8 - | Cover plate |
9 - | Gearbox housing |
q | Servicing → Chapter |
10 - | Clutch housing |
q | Servicing → Chapter |
11 - | Hexagon bolt |
q | 25 Nm and turn 90° further |
12 - | Selector mechanism |
q | Dismantling and assembling → Chapter |
13 - | Hexagon bolt |
q | 25 Nm |
