Removing and installing over-centre spring
Removing and installing over-centre spring
Special tools and workshop equipment required

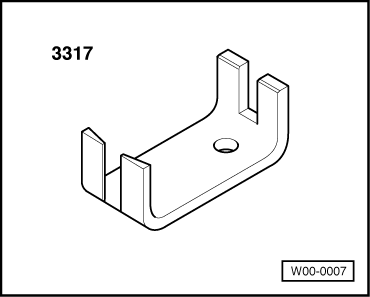

t  Assembly clip -3317-
Removing
–  Remove storage compartment on driver's side → Rep. Gr.68.
  W00-0007

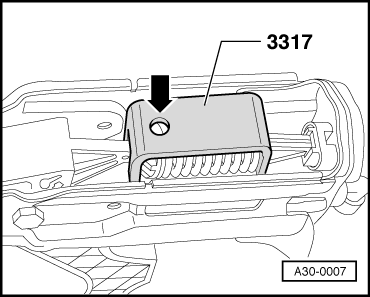

–  Tension over-centre spring with clutch pedal, at the same time pressing on assembly clip -3317- from above.
  Note
The drilling -arrow- faces towards clutch pedal.
–  Move clutch pedal to rest position and take out over-centre spring together with assembly clip -3317-.
Installing
–  Pull clutch pedal into the passenger compartment.
  A30-0007
–  Insert over-centre spring into rear mounting first -arrow B-, then operate clutch pedal until the assembly clip seats on the mounting lug -arrow A- of the clutch pedal.
–  Return clutch pedal to normal position and remove assembly clip.
  A30-0009
