A2
Power transmission
5-speed manual gearbox 02T
Clutch, control / Servicing clutch mechanism
Removing and installing clutch pedal
Removing and installing clutch pedal
Removing and installing clutch pedal
Special tools and workshop equipment required
t

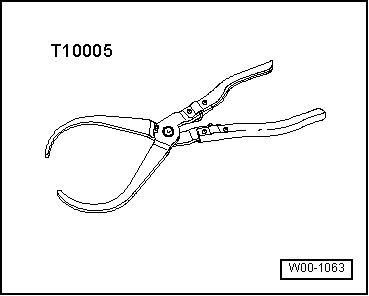

Pliers -T10005-
Removing
–
Remove over-centre spring
→ Chapter
.
Release master cylinder operating rod from clutch pedal as follows:
–
Position pliers -T10005- in the clutch pedal recesses.
–
Press the mounting together
-arrows-
and separate the clutch pedal from the clutch master cylinder.
–
Remove nut
-A-
.
–
Pull out bolt until clutch pedal can be removed.
Installing
Installation is carried out in reverse sequence; note the following:
–
Install over-centre spring
→ Chapter
.
–
Retaining clip
-A-
must be fitted on operating rod
-B-
of clutch master cylinder.
–
Press clutch pedal in
-direction of arrow-
until it engages. Ensure that it is properly locked.
