Installing > < Checking outer constant velocity joint

A2

Removing
Removing

–  Before dismantling, mark position of ball hub in relation to ball cage and joint body with an electric scriber or oil stone -arrow-.
–  Swivel ball hub and ball cage.
–  Take out balls one after the other.

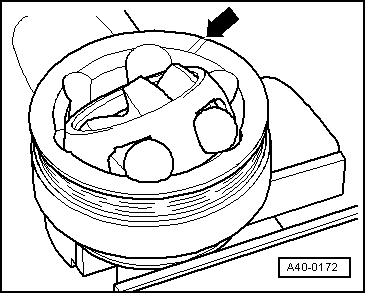

  A40-0172
–  Turn cage until two cage openings -arrow- are level with joint body.
–  Lift out cage together with hub.

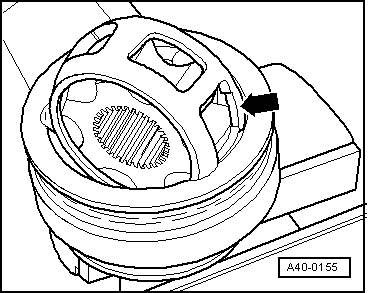

  A40-0155
–  Swivel one segment of the hub into one of the cage openings.
–  Pivot hub out of cage.
The 6 balls in each joint belong to one tolerance group. Check stub axle, hub, cage and balls for pitting and signs of seizure. Excessive backlash in the joint will cause knocking or jolts under load change; in such cases the joint must be renewed. Polished areas and visible ball track marks are not a reason for changing the joint.
  A40-0156
