A3 L4-2.0L Turbo (BPY) (2006)
/Page-1467002.png)
^
2 pieces
^
11 - 25 Nm
12 - Air conditioner compressor
13 - Ribbed belt
^

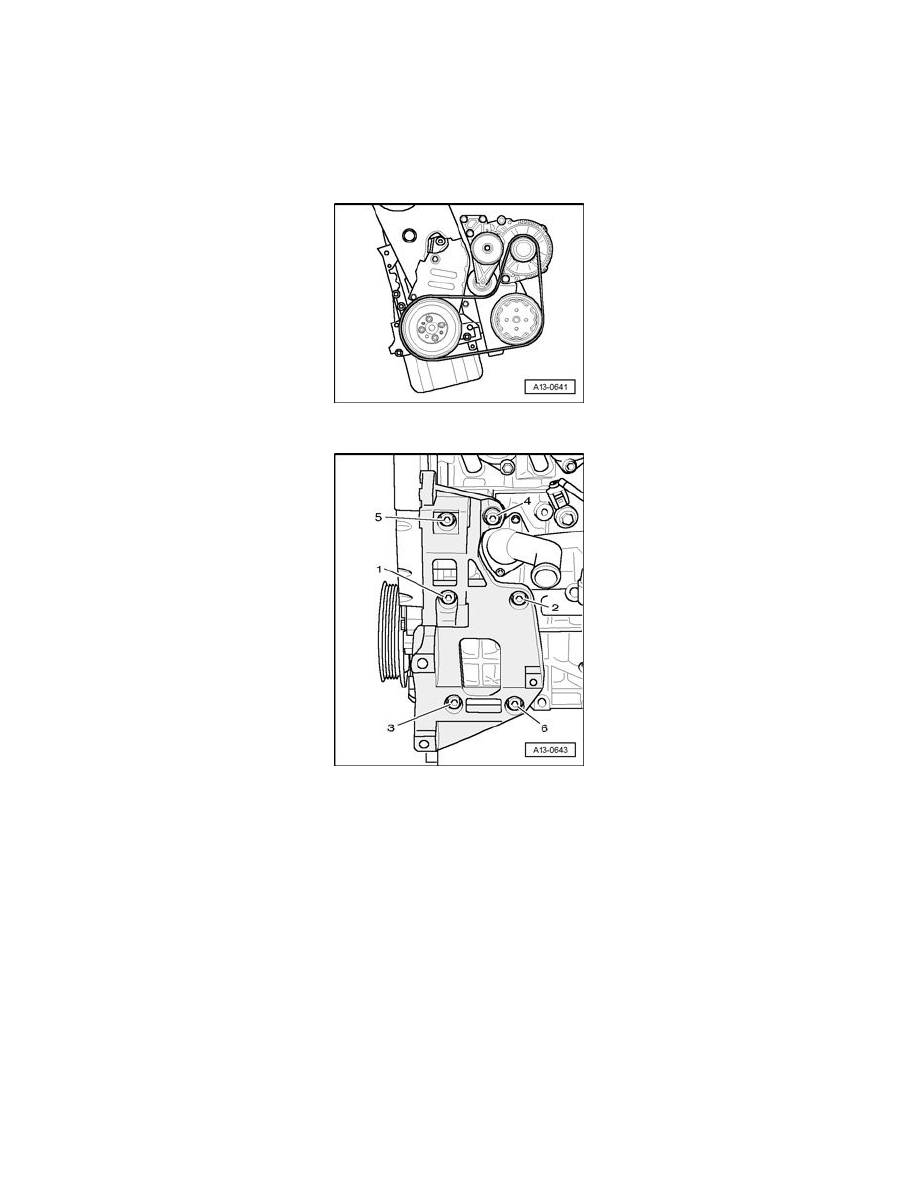

Ribbed belt routing
^
Check for wear
^
Do not kink
Ribbed belt routing
Accessory Assembly Bracket
Accessory assembly bracket tightening sequence
-
Proceed as follows:
-
Install bolts - 1 to 6 - and tighten by hand.
-
Tighten bolts - 1 to 6 - to 45 Nm
