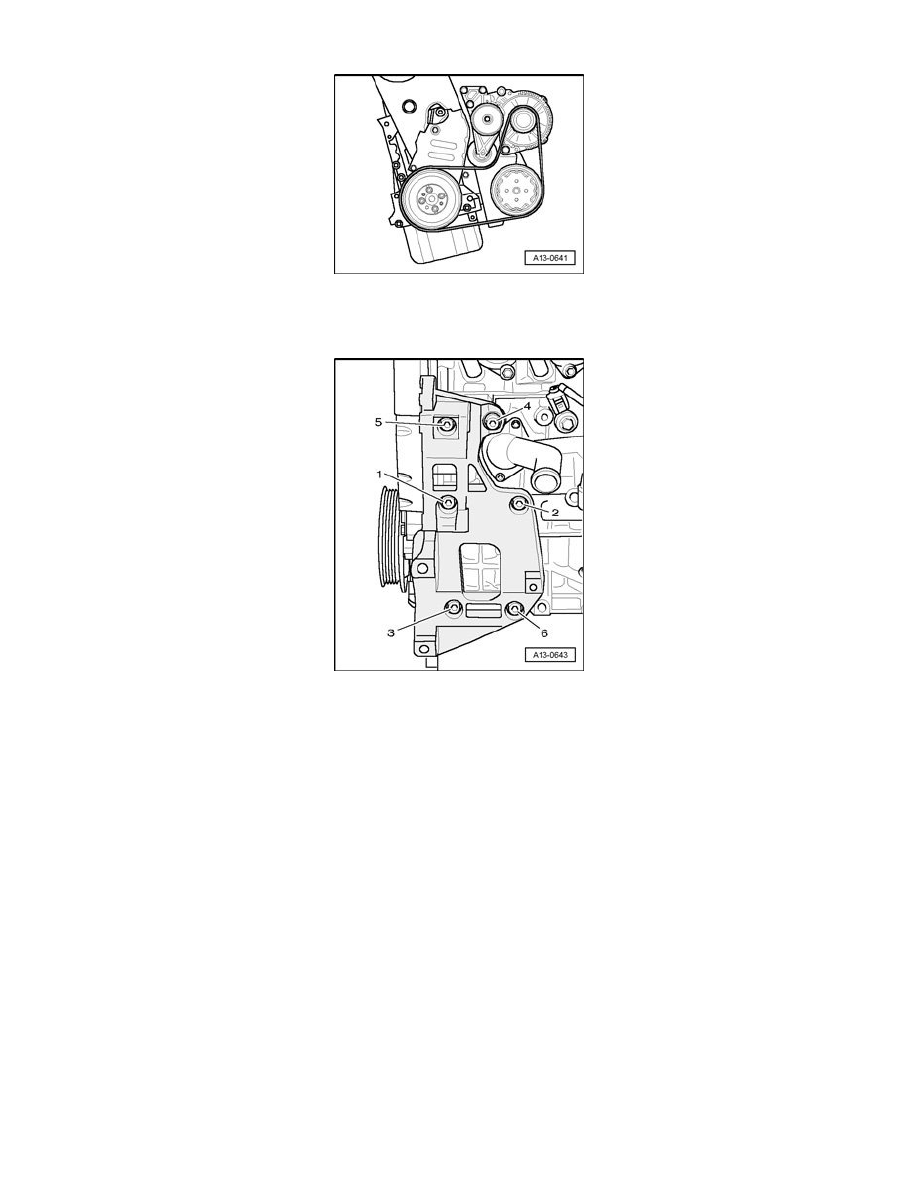

Drive Belt: Diagrams

Ribbed Belt Routing

Ribbed belt routing

Accessory Assembly Bracket

Accessory assembly bracket tightening sequence

-

Proceed as follows:

-

Install bolts - 1 to 6 - and tighten by hand.

-

Tighten bolts - 1 to 6 - to 45 Nm
