Removing and installing rear cover on front seat rail (inboard side)

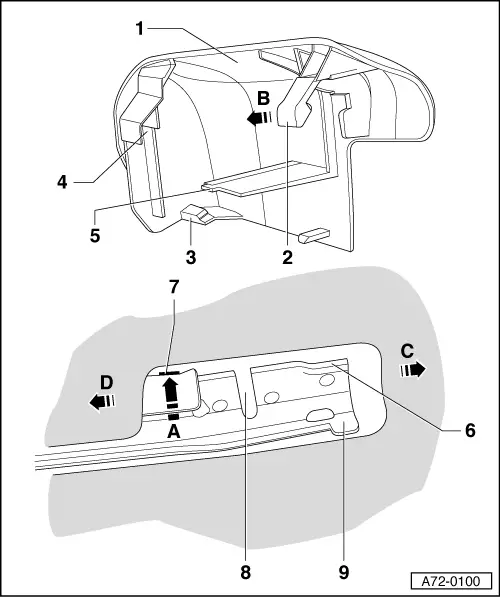

A72-0100

Cover (inboard side)

◆ Removing

‒ Push one finger underneath cover inboard side -1- (direction of arrow -A-) and press the retainer tab -2- in direction of arrow -B-.
‒ At the same time pull front cover inboard side -1- in direction of arrow -C-.

◆ Installing

‒ Enter the cover inboard side -1- press onto carpet and at the same in direction of arrow -D-.
‒ Enter guides -4- into guide rail -6-.

A72-0100

‒ The lugs -3- and -5- must engage in the metal tab -9- and the mount -8-.
‒ Press in cover inboard side -1- until the locking lug -2- engages in cut-out.

Retainer tab
Retainer tab
Guide
Retainer tab
Mounting
Cut-out
Mounting
Metal tab
