A3 Mk1

General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74)
Front seats (5-door vehicles)
Removing and installing rear cover on front seat rail (outboard side)

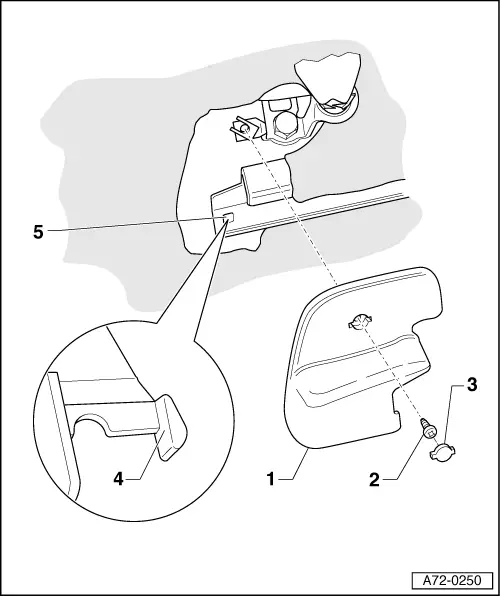

A72-0250
  • Cover (outboard side)
  • ◆ Removing
    • ‒ Lever out cover cap -3- with a screwdriver.
    • ‒ Unscrew bolt -2-.
    • ‒ Pull outboard side cover -1- towards the top with the retainer tab -4- from the mounting -5-.

A72-0250
  • ◆ Installing
    • ‒ Engage locking lug -4- into mounting -5-.
    • ‒ Screw in bolt -2-.
    • ‒ Clip in cover cap.
  • Bolt (1x)
  • Trim cap
  • Retainer tab
  • Mounting
