Notes:

• ◆ The removal and installation procedures may have to be modified slightly depending on equipment versions.
• ◆ On vehicles with memory seat and electric seat, run the seat all the way to the rear and to the top height setting before disconnecting battery.
• ◆ Obtain radio code before disconnecting battery.

Removing

• ‒ Push seat forwards.
• ‒ Removing front seat rail rear cover (outboard side)
• ‒ Removing front seat rail cover behind inboard side => Page 72-38
• ‒ Push back seat.
• ‒ Remove cap -1- => Page 72-37
• ‒ Unscrew nuts -2- (2x) and remove seat by pushing backwards.
• ‒ On vehicles with heated seat, unplug connector.

• ‒ Connect airbag adapter VAS 5094 => Page 72-46
• ‒ Cover floor covering at rear around guide rail.
• ‒ Push seat backwards out of guide.

Installing

Installation is carried out in the reverse order; note the following:

Vehicles with side airbag:

• ‒ Switch ignition on.

• ‒ Connect battery earthing strap.

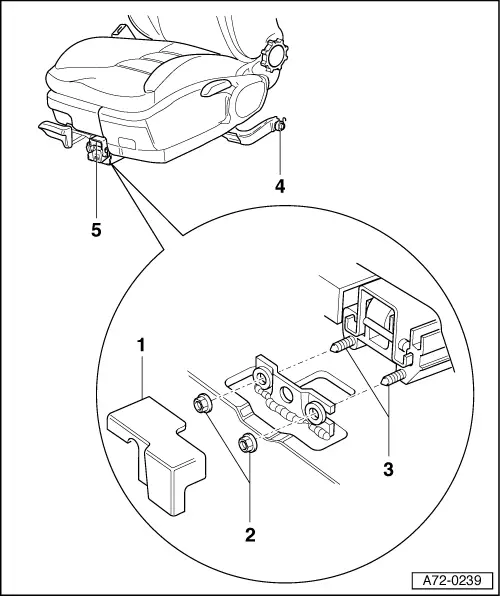

• Trim cap
• Nut (2x)
• ‒ Tightening torque 23 Nm
• ◆ Self-locking
• ◆ Replace
• Threaded pin
• Rear rollers
• Front slides
• ‒ Lubricate front slides -5- with multi purpose grease if seat does not slide back and forward smoothly.
